Description

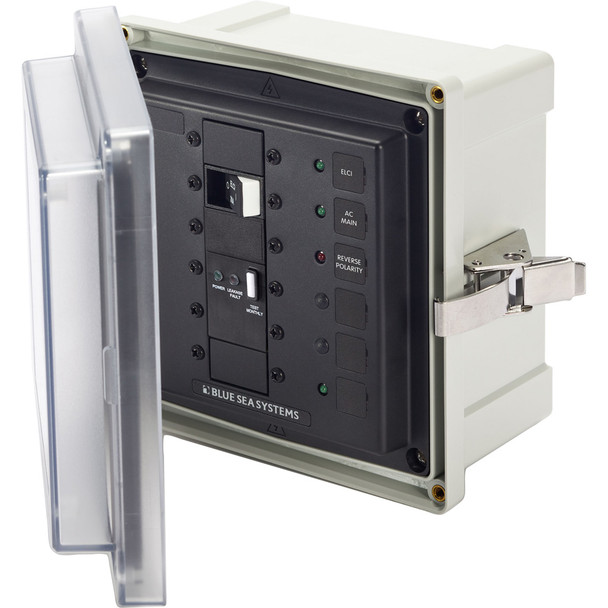

3119 SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 Blank Circuit Position
The 3119 panel enclosure is for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet
Features:
- Includes one 120/240V AC / 50A ELCI Main and one blank position
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies A- and C- Series Flat Rocker and ELCI Main circuit breakers
- Stainless steel mounting hardware included
- Includes waterproof glands
- LED lights for back lighting and ON indication
Technical Specifications:
- Minimum Operating Temperature: -35 C
- Maximum Operating Temperature: 66 C
- Cover Screws and Hardware: 10-32 Stainless Steel
- Enclosure Size: 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm)
- Exterior Overall Dimensions: 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm)
- Mounting Hardware: 1/4" Diameter, #12 (6 mm)
- Weight: 7.00lb (3.18 kg)
In the Box:
- 3119 Enclosure
- Glands x 5
- Labels
- Mounting hardware
- Instruction manual
*Sold as an Individual
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Blue Sea Systems 3119 SMS surface mount system panel enclosure is designed for secure and reliable electrical distribution on marine vessels and other applications requiring high safety standards. This enclosure accommodates a 50A ELCI main circuit breaker with a 120/240V AC rating, providing essential protection and compliance with ABYC E-11 standards when installed within 10 feet of shore power inlets. Its durable glass-filled polycarbonate construction ensures long-lasting performance and resistance to harsh marine environments. The clear cover allows for quick visual inspection of breaker status without opening the enclosure, enhancing safety and operational efficiency. An overlapping cover design with a seamless PUR gasket provides increased strength and gasket protection against moisture ingress, making it suitable for demanding conditions. The enclosure features a stainless steel hinge pin for easy removal and stainless steel latch for secure closure without penetrating the enclosure, maintaining water resistance. It includes blank circuit positions compatible with Carling Technologies A- and C- Series Flat Rocker and ELCI Main circuit breakers, offering flexibility for custom breaker configurations. The package comes with stainless steel mounting hardware and waterproof glands to ensure a robust installation. LED backlighting and ON indicator lights enhance visibility in low-light conditions, aiding quick diagnostics. The enclosure is engineered to operate effectively across a temperature range from -35°C to 66°C, suitable for various marine climates. Its compact size and sturdy construction make it a reliable choice for marine electrical systems, ensuring safety, durability, and ease of maintenance. The package includes the enclosure, glands, labels, mounting hardware, and an instruction manual, providing everything needed for installation and operation. Note that this product is sold individually and includes a warning regarding potential chemical exposure, consistent with California Proposition 65 requirements.
Features:
- Includes one 120/240V AC / 50A ELCI Main circuit breaker and one blank position
- Blank apertures allow for custom breaker configurations
- Constructed from glass-filled polycarbonate for durability
- Clear cover enables easy visual inspection of breaker status
- Overlapping cover design provides enhanced strength and gasket protection
- Formed-in-place seamless PUR gasket ensures water resistance
- Removable stainless steel hinge pin allows for unobstructed access
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions compatible with Carling Technologies A- and C- Series Flat Rocker and ELCI Main breakers
- Includes stainless steel mounting hardware and waterproof glands
- Equipped with LED backlighting and ON indicator lights for visibility and diagnostics
