Description

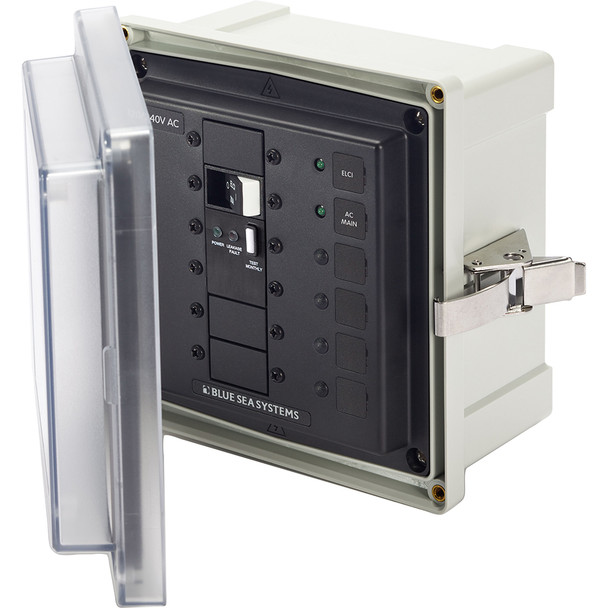

3120 - SMS Panel Enclosure with ELCI Main (50A) and 2 Blanks - 240V
The 3120 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.
Features:
- Blank apertures for custom breaker loading
- Glass filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LEDs for backlighting and ON indication
Technical Specifications:
- Circuit Breaker Type - 1 x ELCI (50A) Main 240V and 2 x Blank
- Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
- LEDs Installed - 2 x Green ON (240V AC)
In the Box:
- 3120 Enclosure
- Glands x 5
- Labels
- Mounting hardware
- Instruction manual
*Sold as an Individual
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Blue Sea Systems 3120 SMS Panel Enclosure is engineered to house Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and large frame devices, providing reliable protection within marine and industrial environments. Designed with a durable glass filled polycarbonate base, this enclosure ensures longevity and resistance to harsh conditions. The clear cover allows for quick visual inspection of circuit breaker status, enhancing safety and operational efficiency. Its overlapping cover construction offers increased strength and gasket protection, while the oversized, seamless PUR gasket ensures a watertight seal, safeguarding internal components from moisture and contaminants. The enclosure features easily removable stainless steel hinge pins for straightforward installation and maintenance, along with a stainless steel latch that secures the cover without penetrating the enclosure, maintaining its integrity. Equipped with blank circuit positions compatible with Carling Technologies A and C Series Flat Rocker and ELCI Main breakers, this panel provides flexible customization options. Waterproof glands are included to facilitate secure wiring and connections, and integrated LEDs offer backlighting and ON indicators for enhanced visibility. This enclosure is designed to meet ABYC E-11 standards when used with an ELCI main circuit breaker and mounted within 10 feet of the AC shore power inlet, making it suitable for marine applications. The overall dimensions allow for versatile mounting in tight spaces, and the product includes essential mounting hardware, glands, labels, and an instruction manual. Whether for new installations or upgrades, the Blue Sea Systems 3120 enclosure offers a robust, safe, and flexible solution for electrical distribution needs at 240V. Its compact size and thoughtful features make it ideal for boat and industrial panel setups, ensuring compliance and safety while maintaining ease of access and operation.
Features:
- Blank apertures for custom breaker loading
- Glass filled polycarbonate base for durability
- Clear cover for easy circuit breaker status viewing
- Overlapping cover with enhanced gasket protection
- Oversized, seamless PUR gasket for watertight sealing
- Removable stainless steel hinge pin for installation
- Stainless steel latch secures cover without enclosure penetration
- Blank circuit positions compatible with Carling Technologies A and C Series breakers
- Includes waterproof glands for secure wiring
- LED indicators for backlighting and ON status
