Description

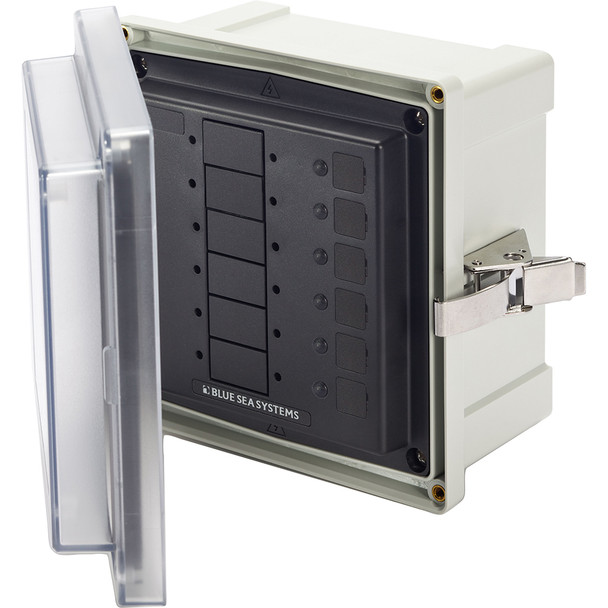

3113 - SMS Panel Enclosure with 6 Blank Circuits
The 3113 panel enclosure is built for main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.
Features:
- Blank apertures for custom breaker loading
- Glass filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies A- and C- Series Flat Rocker and ELCI Main circuit breakers
Technical Specifications:
- Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
- LEDs Installed - 1 x Red (Reverse Polarity - 230V AC and 3 x Green ON (230V AC)
In the Box:
- 3123 Enclosure
- Mounting hardware
- Instruction manual
*Sold as an Individual
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Blue Sea Systems 3113 panel enclosure is designed for main circuit breakers and large frame devices, making it ideal for marine electrical applications. Constructed from durable glass-filled polycarbonate, this enclosure offers reliable protection and easy visibility with a clear cover that allows quick circuit status checks. Its overlapping cover enhances strength and gasket protection, ensuring a secure seal against environmental elements. The oversized, formed-in-place seamless polyurethane gasket provides additional sealing integrity, making it suitable for demanding marine environments. The enclosure features blank apertures that enable customization for various breaker configurations, accommodating Carling Technologies A- and C-Series Flat Rocker switches and ELCI Main circuit breakers. The stainless steel hinge pin is easily removable, facilitating unobstructed installation, while the stainless steel latch secures the cover without penetrating the enclosure, maintaining its integrity and water resistance. This panel enclosure meets ABYC E-11 standards when used with an ELCI Main circuit breaker and mounted within 10 feet of the AC shore power inlet, ensuring compliance with marine safety regulations. The enclosure includes a single red LED indicator for reverse polarity detection and three green LEDs for operational status, providing clear visual cues for system monitoring. Compact in size, it measures approximately 7.6 inches high, 7.4 inches wide, and 4.7 inches deep overall, with the enclosure itself measuring 6 inches in height and width, and 4 inches deep. The package comes with mounting hardware and an instruction manual for straightforward installation. This product is sold individually and is suitable for a variety of marine electrical setups, offering flexibility and reliability for boat owners and technicians. Please note that this product contains chemicals known to the State of California to cause reproductive harm, in accordance with California Proposition 65. For more details, visit P65Warnings.ca.gov.
Features:
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate mounting box for durability
- Clear cover for easy circuit breaker status viewing
- Overlapping cover for added strength and gasket protection
- Seamless polyurethane gasket for reliable sealing
- Removable stainless steel hinge pin for easy installation
- Stainless steel latch secures cover without penetrating the enclosure
- Accommodates Carling Technologies A- and C-Series Flat Rocker and ELCI Main circuit breakers
- Includes LED indicators for reverse polarity and operational status
- Compact size suitable for marine electrical installations
