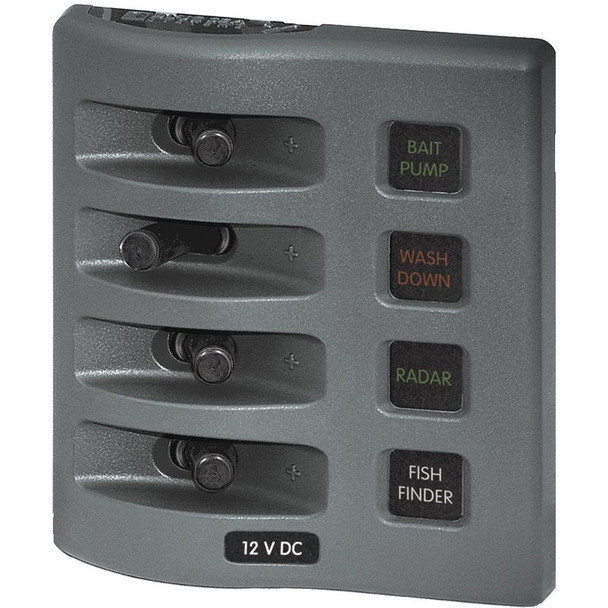

Blue Sea Systems 4304 WeatherDeck Water Resistant Fuse Panel - 4 Position, Gray

WeatherDeck Water Resistant Fuse Panel

PN: 4304

Color: Gray

Features:

• Panel front rated IP67 when properly mounted with watertight mounting gasket
• IP67 protected against immersion up to 1 meter for 30 minutes
• Designed for flybridge and open cockpit applications
• Independent label back lighting circuit for remote switching and dimming
• Each panel can be mounted in four different orientations
• Integrated ATO/ATC fuse based circuit protection
• Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Specifications:

• Weatherproof: Waterproof
• Positions: 4
• Nominal Voltage: 12v DC
• Circuit Protection: Fuse
• Maximum Amperage: 15A @ 12v DC (per circuit)
• Panel Cumulative Rating: 60A
• Backlit Label: Bicolored LED
• Backlighting Amperage: 10mA/illuminated Circuit
• Backlighting Voltage: 12v DC
• Height: 4.3"
• Width: 3.88"
• Depth: 2.5"

Included:

• (4) 4138 WeatherDeck Toggle Switch Boot - Black
• (4) 4150 WeatherDeck Toggle Switch SPST - ON-OFF
• (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
• (4) 5242 ATO/ATC Fuse - 15 Amp

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 4304 WeatherDeck Water Resistant Fuse Panel is designed for marine applications requiring reliable electrical protection in harsh environments. Constructed with a waterproof front rated IP67 when properly mounted with the included watertight gasket, this panel offers protection against immersion up to 1 meter for 30 minutes. Its rugged design makes it ideal for flybridge and open cockpit setups where exposure to water and weather is common. The panel features four positions, each rated for up to 15 amps at 12 volts DC, with a total maximum circuit rating of 60 amps, ensuring safe and efficient power distribution.
The integrated fuse-based circuit protection simplifies wiring and maintenance, while the backlit labels with bicolored LEDs enable quick circuit status identification—red for OFF, green for ON, and no color indicating a blown fuse or no power. The independent label backlighting circuit allows remote switching and dimming, providing flexibility for various installation needs.
Designed for versatility, each panel can be mounted in four different orientations, accommodating different space and layout requirements. The panel's compact dimensions make it suitable for tight spaces without sacrificing durability or functionality. Included with the fuse panel are weatherproof toggle switch boots, SPST ON-OFF switches, waterproof circuit labels, and 15-amp ATO/ATC fuses, ensuring a ready-to-install solution for marine electrical systems.
This fuse panel operates on a 12-volt DC system, with backlighting consuming minimal power. Its robust construction and comprehensive features make it an essential component for boat owners seeking a weatherproof, reliable fuse management solution for open-air environments. Please note that this product contains chemicals known to the State of California to cause reproductive harm, and additional safety information can be found at P65Warnings.ca.gov.

Features:

• Panel front rated IP67 for waterproof protection when properly mounted with gasket

• Protection against immersion up to 1 meter for 30 minutes

• Designed for flybridge and open cockpit applications

• Independent label backlighting with remote switching and dimming

• Four mounting orientations for flexible installation

• Integrated ATO/ATC fuse-based circuit protection

• Bicolored LEDs for circuit status indication: red (OFF), green (ON), no color (Blown or no power)
