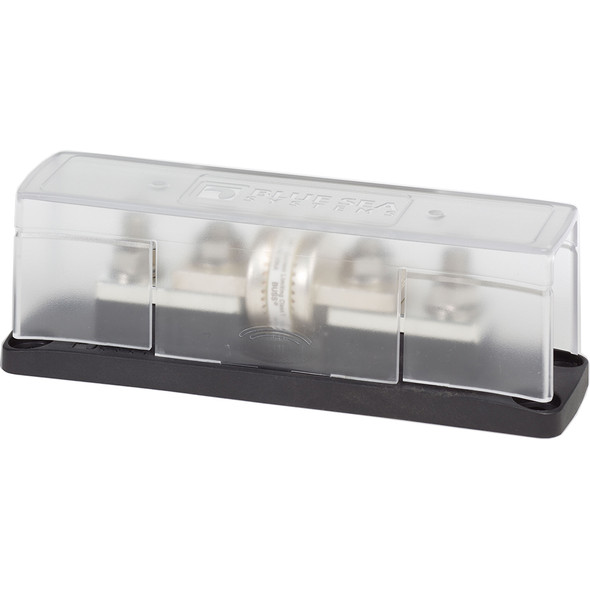

Blue Sea Systems 5502100 Class T Fuse Block with Insulating Cover for 225-400A Circuits

Class T Fuse Block with Insulating Cover - 225 to 400A

Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics

• Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
• Insulating cover satisfies ABYC/USCG insulation requirements
• Cover breakouts allow wire access in any direction
• Stud design ensures secure fuse mounting even with high heat
• Stainless steel studs provide resistance to corrosion and high torque
• One-piece stainless flange nuts ensure safe and secure connections
• UL 94-V0 base resists high heat

Technical Specifications:

• Cable Size: Up to 4/0 AWG
• Ignition Protected: Yes
• Maximum Amperage: 320A
• Maximum Voltage: 160V DC
• Fuse Mounting Blocks: Tin-Plated Copper
• Terminal Stud Size: 5/16"-18 (M8)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 5502100 Class T Fuse Block is designed for high-current circuit protection in marine and industrial applications. Rated for 320 amps and suitable for DC voltages up to 160V, this fuse block provides reliable, fast-acting protection for inverters and other electronic components. Its four-stud design offers ample space around the connection points, facilitating the installation of large cable lugs without obstruction, which simplifies wiring and maintenance. The fuse block features an insulating cover that complies with ABYC and USCG standards, ensuring safety and insulation integrity in marine environments. Breakout openings in the cover allow for flexible wire access in any direction, streamlining wiring configurations and reducing installation time. The sturdy stud design guarantees secure fuse mounting even under high-heat conditions, while stainless steel studs provide excellent corrosion resistance and withstand high torque for long-term reliability. The one-piece stainless flange nuts ensure safe and secure electrical connections, reducing the risk of loose fittings. Constructed with a UL 94-V0 rated base, the fuse block resists high heat, adding an extra layer of safety. Compatible with cable sizes up to 4/0 AWG, this fuse block is ideal for heavy-duty applications requiring robust circuit protection. The fuse mounting blocks are made from tin-plated copper, ensuring excellent electrical conductivity and corrosion resistance. The terminal stud size is 5/16"-18 (M8), accommodating a variety of fuse types. Designed with safety and durability in mind, the Blue Sea Systems 5502100 fuse block is a dependable choice for protecting high-current circuits in demanding environments.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Features:

• Amperage Rating: 320A for high-current protection

• Voltage Compatibility: Up to 160V DC

• Four Stud Design: Provides ample access for large cable lugs

• Insulating Cover: Meets ABYC/USCG insulation requirements

• Wire Access: Breakouts allow flexible wiring in any direction

• Stud Construction: Ensures secure fuse mounting under high heat

• Stainless Steel Studs: Offer corrosion resistance and high torque capability

• One-Piece Stainless Flange Nuts: Facilitate safe, reliable connections

• Base Material: UL 94-V0 rated for high heat resistance

• Cable Compatibility: Up to 4/0 AWG for heavy-duty applications
