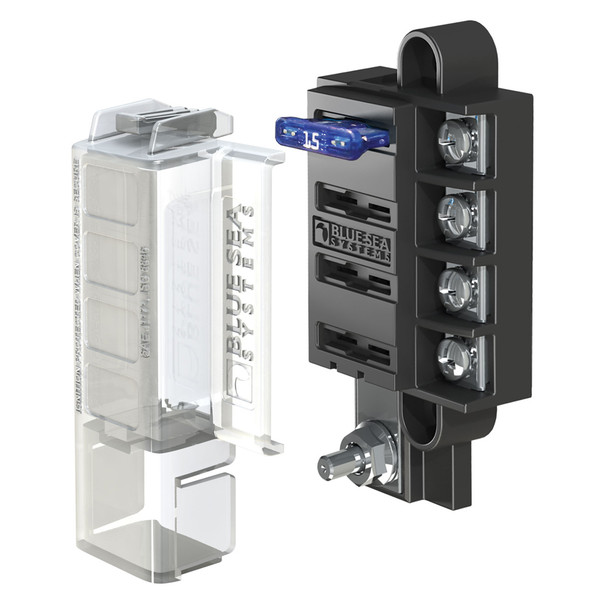

Blue Sea Systems ST Blade Compact Fuse Block with Cover - 4 Circuits

ST Blade Compact Fuse Blocks - 4 Circuits w/Cover

Provides surface mount circuit protection for ATO/ATC Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

• Compact common source fuse block

• Accepts ATO and ATC fast acting blade fuses

• Single side entry wiring

• Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment

• Insulating cover meets ABYC/USCG insulation requirements

• Tin-plated copper buses and fuse clips

• Accepts ring or snap fork type terminals

• Small format standard and custom labels available

Specifications

• Circuits:4

• Maximum Amperage: 100A per block / 30A per circuit

• Maximum Voltage:32V DC

• Mounting: #8 Screw (M4)

• Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 5045 ST Blade Compact Fuse Block offers reliable circuit protection in a compact design suitable for various automotive and marine applications. Designed to accept ATO and ATC fast-acting blade fuses, this fuse block ensures secure electrical connections and easy maintenance. Its surface mount configuration maximizes space efficiency, making it ideal for tight installation environments. The single side entry wiring feature simplifies wiring routes, reducing installation time and minimizing clutter within engine compartments or electrical panels. The fuse block is ignition protected, meeting ISO 8846 and SAE J1171 standards, which makes it suitable for use in gasoline engine compartments where safety is paramount. Constructed with tin-plated copper buses and fuse clips, it provides excellent electrical conductivity and corrosion resistance, ensuring long-term durability even in harsh environments. The insulating cover complies with ABYC and USCG insulation standards, offering additional safety and protection against accidental contact or short circuits. Accepting ring or snap fork terminals, this fuse block accommodates various wiring configurations for versatile installation options. Custom labels can be added for easy circuit identification, enhancing system organization and troubleshooting. This fuse block supports up to 100 amps per block and 30 amps per circuit at a maximum voltage of 32V DC, making it suitable for a broad range of electrical systems. Mounting is straightforward with a #8 screw (M4), and the screw terminal torque specifications ensure secure, vibration-resistant connections. Overall, the Blue Sea Systems 5045 fuse block combines safety, durability, and ease of use in a compact package, making it an essential component for marine, RV, or automotive electrical systems.

Features:

• Provides surface mount circuit protection for ATO/ATC fuses in a compact footprint

• Accepts ATO and ATC fast acting blade fuses

• Single side entry wiring for simplified installation

• Ignition protected, meeting ISO 8846 and SAE J1171 standards for engine compartment safety

• Insulating cover meets ABYC and USCG insulation requirements

• Constructed with tin-plated copper buses and fuse clips for durability and corrosion resistance

• Compatible with ring or snap fork terminals for flexible wiring options

• Supports up to 100A per block and 30A per circuit at 32V DC

• Easy mounting with #8 screw (M4) and secure terminal connections
