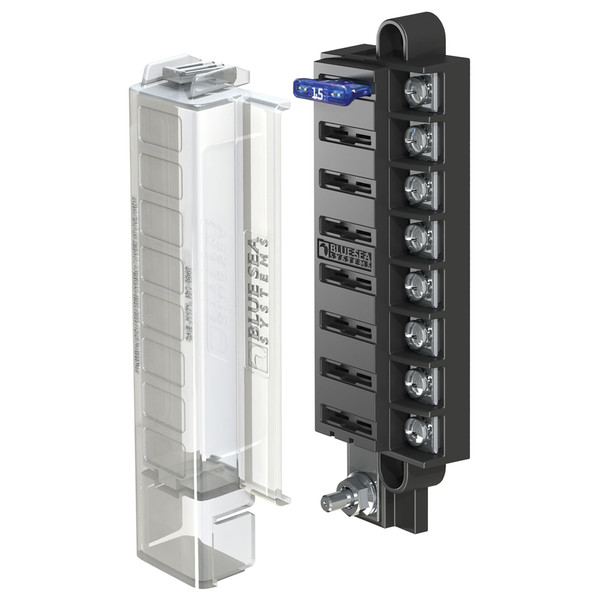

Blue Sea Systems ST Blade Compact Fuse Block with Cover - 8 Circuits, 100A Max

ST Blade Compact Fuse Blocks - 8 Circuits w/Cover

Provides surface mount circuit protection for ATO/ATC Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

• Compact common source fuse block

• Accepts ATO and ATC fast acting blade fuses

• Single side entry wiring

• Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment

• Insulating cover meets ABYC/USCG insulation requirements

• Tin-plated copper buses and fuse clips

• Accepts ring or snap fork type terminals

• Small format standard and custom labels available

Specifications

• Circuits:8

• Maximum Amperage: 100A per block / 30A per circuit

• Maximum Voltage:32V DC

• Mounting: #8 Screw (M4)

• Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 5046 ST Blade Compact Fuse Block offers reliable circuit protection for automotive and marine applications with a compact design that saves space. This fuse block supports up to 8 circuits, each rated for a maximum of 30 amps, making it suitable for distributing power efficiently in tight spaces. Its surface-mount configuration simplifies installation, with wire entry from one side to optimize wiring layout and reduce clutter. The fuse block is designed to accept both ATO and ATC fast-acting blade fuses, providing flexibility for various fuse types and replacements. Its ignition-protected construction meets ISO 8846 and SAE J1171 standards, ensuring safe operation in gasoline engine compartments. The insulating cover complies with ABYC and USCG insulation requirements, contributing to overall safety and durability in marine environments. Constructed with tin-plated copper buses and fuse clips, the fuse block ensures excellent conductivity and corrosion resistance. It accepts ring or snap fork terminals, accommodating different wiring preferences. The fuse block mounts securely using a #8 screw (M4), with screw terminal torque specifications that facilitate proper installation. Small format standard and custom labels are available for easy circuit identification, enhancing system clarity and maintenance. This fuse block is a robust solution for managing electrical circuits in boats, RVs, and other vehicles, providing dependable protection in a compact package. Its compact footprint, combined with high-quality materials and compliance with safety standards, makes it an ideal choice for professional and DIY installations alike.

Features:

• Compact surface-mount fuse block designed for space-saving applications

• Accepts ATO and ATC fast-acting blade fuses for versatile protection

• Single side entry wiring for simplified installation and neat wiring layout

• Ignition protected design meets ISO 8846 and SAE J1171 standards

• Insulating cover complies with ABYC and USCG insulation requirements

• Constructed with tin-plated copper buses and fuse clips for durability and corrosion resistance

• Compatible with ring or snap fork terminal connections

• Mounts securely with #8 screw (M4) for reliable installation

• Supports up to 8 circuits with a maximum of 30A per circuit and 100A per block

• Small format with options for standard and custom labels to identify circuits easily
