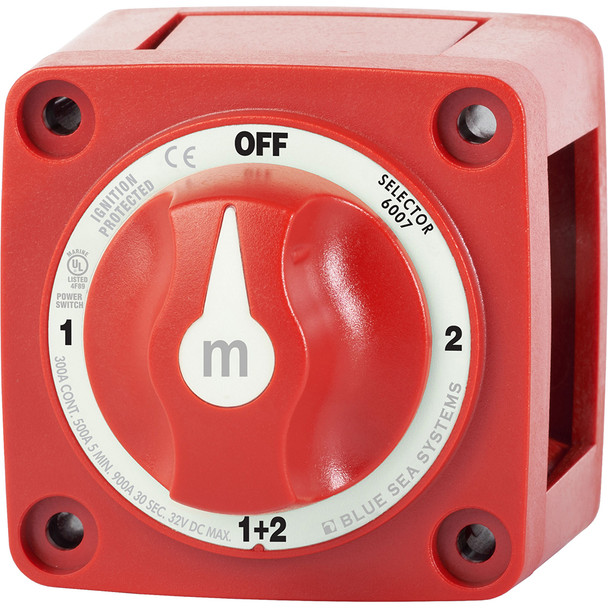

Blue Sea Systems 6007 m-Series Mini Battery Switch Selector Four-Position Red

• Switches battery bank 1 or battery bank 2 or both to a single load using one switch

• Ignition protected - Safe for installation aboard gasoline powered boats

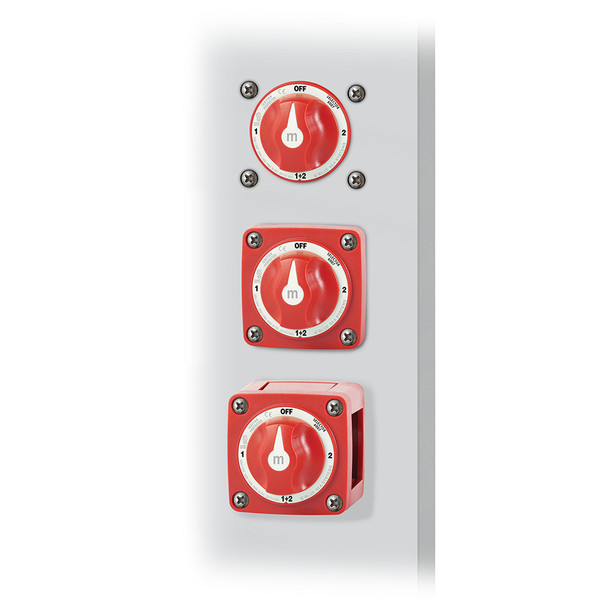

• Case design allows surface, front panel, or rear panel mounting

• Isolating cover with snap-on sections protects rear contacts

• 3/8-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8 and M10 ring terminals

• 7/8 (22.22mm) stud length to accept multiple cable terminals

• Ideal for marine or RV applications

• All non-corrosive marine grade metals

• Molded in durable reinforced polycarbonate

• Tactile textures indicate knob position by feel only

• Label with international ON/OFF legends

• Removable key or knob remains positively retained

• ICON label set included for circuit identification

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 6007 m-Series Mini Battery Switch Selector offers reliable and flexible control for marine and RV electrical systems. Designed with a make-before-break contact mechanism, it allows seamless switching between two battery banks without power interruption, ensuring your systems remain operational during transitions. The switch enables you to select battery bank 1, battery bank 2, or both to a single load with a simple turn of the knob, providing convenient management of your power sources.

Constructed from durable, marine-grade metals and molded in reinforced polycarbonate, this switch is built to withstand harsh environments. Its ignition-protected design makes it safe for installation aboard gasoline-powered boats, and the case can be surface-mounted, or mounted on the front or rear panels for versatile installation options. The isolating cover with snap-on sections protects rear contacts from dirt and moisture, enhancing longevity and safety. The switch features 3/8-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accommodating 3/8 and M10 ring terminals. With a 7/8 inch stud length, it can accept multiple cable terminals for robust wiring connections.

Designed for user-friendly operation, the toggle knob features tactile textures that indicate its position by feel alone, and is labeled with international ON/OFF legends for clarity. The removable key or knob remains positively retained, preventing accidental disconnection, while an ICON label set provides clear circuit identification. This switch's compact size and versatile mounting options make it an ideal choice for marine and RV applications where space and reliability are critical. Its construction with non-corrosive, marine-grade metals ensures lasting performance in demanding environments, making it a dependable component for your power management needs.

Features:

• Make-before-break contact design allows seamless switching without power interruption

• Switches between battery bank 1, battery bank 2, or both to a single load

• Ignition protected for safe installation on gasoline-powered boats

• Multiple mounting options including surface, front panel, or rear panel

• Isolating cover with snap-on sections protects rear contacts

• 3/8-16 tin-plated copper studs for high conductivity and corrosion resistance

• Stud length of 7/8 inch accommodates multiple cable terminals

• Suitable for marine and RV electrical systems

• Constructed with non-corrosive marine-grade metals and reinforced polycarbonate

• Tactile textured knob indicates position by feel only

• Labeled with international ON/OFF legends for clarity

• Removable key or knob remains securely retained

• Includes ICON label set for circuit identification
