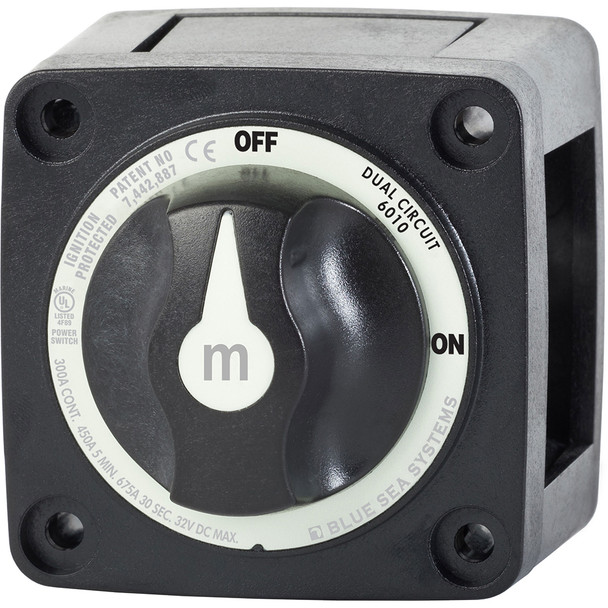

Blue Sea Systems 6010200 m-Series Mini Dual Circuit Battery Switch - Black

m-Series Mini Dual Circuit Battery Switch - Black

Simultaneously switches two isolated battery banks.

Switch Type: Dual Circuit
Color: Black
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 32V DC
Continuous Rating : 300A
Intermittent Rating : 450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm)
Mounting Holes: Accept #10 Screw
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.80lb (0.36 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 6010200 m-Series Mini Dual Circuit Battery Switch provides reliable control over two isolated battery banks in a compact design. Constructed with a durable black finish, this switch allows for seamless switching between two separate power sources, ensuring your electrical system remains flexible and secure. Its dual circuit configuration supports a maximum continuous rating of 300 amps and intermittent ratings up to 450 amps for five minutes, making it suitable for demanding marine and automotive applications. The switch features two positions, allowing users to easily select or disconnect power sources without complex wiring or labor-intensive setups. It does not combine batteries or disconnect the alternator field, focusing solely on switching functions. The switch accommodates 4/0 AWG cables, with a cable clearance of approximately 1.12 inches, ensuring compatibility with thick gauge wiring for high current loads. The terminal studs are 3/8-inch-16 (M10), torqued to 120 in-lb for secure connections, and the mounting holes accept #10 screws for straightforward installation. Weighing just under one pound, this switch offers a compact solution for space-constrained environments. Its rugged construction and clear operational design make it an ideal choice for marine, RV, and industrial electrical systems, providing peace of mind during critical operations. For detailed installation instructions and safety information, consult the owner’s manual available online. Please note that this product may contain chemicals known to cause reproductive harm according to California’s Proposition 65, and users should review the warning at P65Warnings.ca.gov.

Features:

• Dual circuit switch type allows simultaneous control of two isolated battery banks

• Maximum voltage of 32V DC supports high-power applications

• Continuous current rating of 300 amps ensures reliable operation under load

• Intermittent rating of 450 amps for up to 5 minutes suitable for short-term high-current demands

• Cranking ratings up to 1000 amps for 10 seconds and 650 amps for 1 minute support starting power needs

• Cable clearance of 1.12 inches accommodates 4/0 AWG cables for high current wiring

• Terminal studs are 3/8-inch-16 (M10) with a torque of 120 in-lb for secure connections

• Mounting holes compatible with #10 screws facilitate easy installation

• Compact weight of approximately 0.8 pounds makes it suitable for space-sensitive installations
