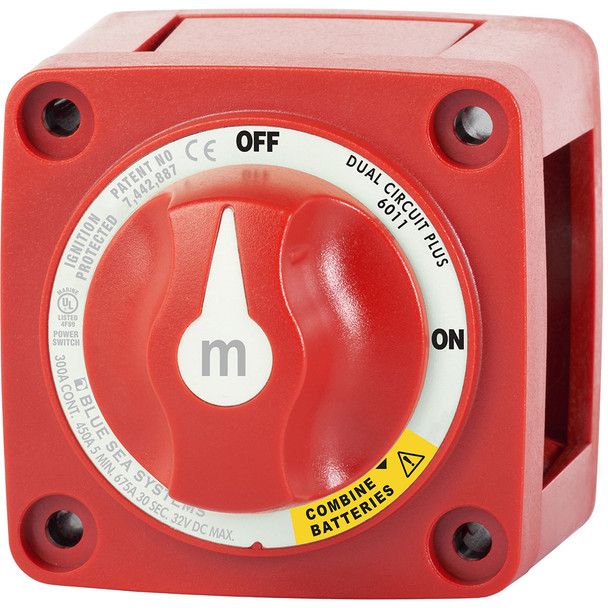

Blue Sea Systems 6011 m-Series Mini Battery Switch with Dual Circuit Plus

• Switches two battery banks simultaneously with one simple ON/OFF switch while maintaining battery bank isolation, minimizing the risk of a dead Start battery

• The Combine Batteries function offers the ability to combine the two battery banks in the event of a low Start battery

• Ignition protected - Safe for installation aboard gasoline powered boats

• Case design allows surface, front panel, or rear panel mounting

• Isolating cover with snap-on sections protects rear contacts

• 3/8-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8 and M10 ring terminals

• 7/8 (22.22mm) stud length to accept multiple cable terminals

• Ideal for marine or RV applications

• All non-corrosive marine grade metals

• Molded in durable reinforced polycarbonate

• Tactile textures indicate knob position by feel only

• Label with international ON/OFF legends

• Removable key or knob remains positively retained

• ICON label set included for circuit identification

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 6011 m-Series (Mini) Battery Switch is a compact and reliable solution for managing dual battery banks in marine and RV applications. Designed with safety and versatility in mind, this switch allows users to control two separate battery systems with a single ON/OFF toggle while maintaining full isolation between the banks. The Dual Circuit Plus feature enables the batteries to be combined in case of a low Start battery, providing an added layer of convenience and emergency preparedness. Crafted from durable, corrosion-resistant marine-grade metals, the switch is built to withstand harsh environments and provide long-lasting performance. Its molded reinforced polycarbonate case offers multiple mounting options, including surface, front panel, or rear panel installations, making it adaptable to various vessel or vehicle configurations. The isolating cover with snap-on sections protects rear contacts from accidental contact or debris, ensuring safety during operation. The switch features 3/8-16 tin-plated copper studs, which maximize conductivity and resist corrosion, accepting both 3/8 and M10 ring terminals. With a 7/8-inch (22.22mm) stud length, it accommodates multiple cable terminals, simplifying wiring and installation. The tactile textures on the knob provide easy identification of the switch position by feel alone, complemented by clear international ON/OFF labels and ICON circuit identification labels. The positive retention of the removable key or knob ensures secure operation, preventing accidental disconnection. This ignition-protected switch is safe for installation aboard gasoline-powered boats, offering peace of mind for marine environments. Overall, the Blue Sea 6011 m-Series Mini Battery Switch combines safety, durability, and functionality in a compact design suitable for demanding marine and RV applications.

Features:

• Dual Circuit Plus feature allows combining batteries in low-start situations

• Ignition protected design for safe installation on gasoline-powered boats

• Multiple mounting options: surface, front panel, or rear panel

• Protective isolating cover with snap-on sections safeguards contacts

• 3/8-16 tin-plated copper studs provide maximum conductivity and corrosion resistance

• Accepts 3/8 and M10 ring terminals for flexible wiring options

• 7/8-inch (22.22mm) stud length accommodates multiple cable terminals

• Constructed from non-corrosive marine-grade metals for durability

• Molded reinforced polycarbonate case withstands harsh environments

• Tactile knob textures for easy feel-based position identification

• International ON/OFF labels and circuit identification icons included

• Removable key or knob remains securely retained during operation
