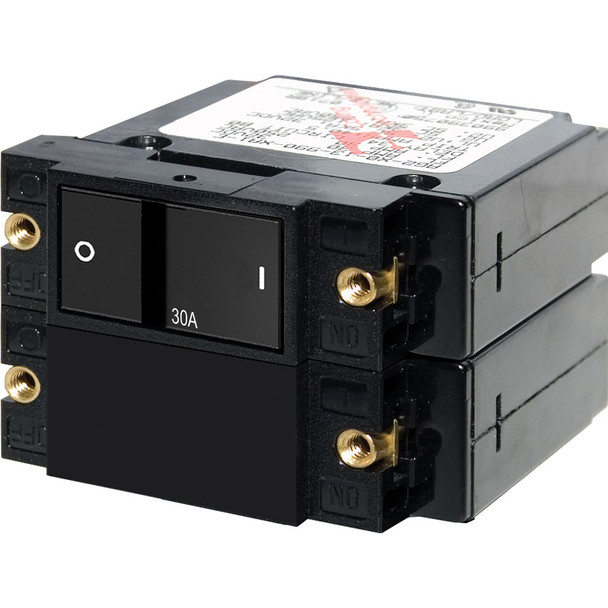

Blue Sea Systems 7414 A-Series Double Pole 30A Flat Rocker Circuit Breaker

• Color actuator indicates "OFF" position

• "Trip Free" design cannot be held "ON" during fault current condition

• International ON/OFF symbols support vertical or horizontal mounting

• Amperage : 30A AC / 30A DC

• Actuator Style: Flat Rocker

• Poles: 2

• Maximum Voltage: 120V AC / 240V AC / 32V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC

• Minimum Operating Temperature: -40 C

• Maximum Operating Temperature: 85 C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Screw Terminal Torque: 14 in-lb (1.58 Nm)

• Switching Cycles: 10000

• Terminal Screw: #10-32 Stainless Steel

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7414 A-Series Flat Rocker Circuit Breaker is a reliable double pole device designed for demanding electrical applications. Featuring a sleek flat rocker actuator, this breaker provides clear visual indication of the "OFF" position through a color-coded actuator, ensuring quick and easy operation. Its trip-free design prevents the circuit from being held "ON" during fault conditions, enhancing safety and protecting connected equipment. The breaker can be mounted in either vertical or horizontal orientation, supported by international ON/OFF symbols that facilitate installation flexibility.
Constructed to handle both AC and DC circuits, the Blue Sea 7414 supports 30A of current at voltages up to 120V AC or 240V AC and 32V DC. It boasts a magnetic hydraulic trip mechanism with an interrupt capacity of up to 3000A at 240V AC, providing robust protection against short circuits and overloads. With a minimum operating temperature of -40°C and a maximum of 85°C, the breaker is suitable for a variety of environments. Durable stainless steel mounting and terminal screws ensure secure installation and reliable electrical connections, with torque specifications optimized for safety and performance.
This circuit breaker is rated for 10,000 switching cycles, ensuring long-term durability in frequently operated systems. Its compact design, weighing approximately 0.38 pounds, allows for easy integration into panels or enclosures. Please be aware that this product contains chemicals including DEHP, which are recognized to cause health risks; detailed safety information is available at P65Warnings.ca.gov. Ideal for marine, industrial, or RV applications, the Blue Sea Systems 7414 provides dependable circuit protection in a compact, easy-to-use package.

Features:

• Color actuator indicates 'OFF' position for easy status recognition

• Trip-free design prevents holding the breaker 'ON' during faults

• Supports vertical or horizontal mounting with international ON/OFF symbols

• Handles 30A current at 120V AC, 240V AC, and 32V DC for versatile electrical protection

• Magnetic hydraulic trip mechanism with high interrupt capacity for safety

• Operates reliably in temperatures from -40°C to 85°C

• Durable stainless steel mounting screws and terminal connections for secure installation

• Rated for 10,000 switching cycles for long-term durability
