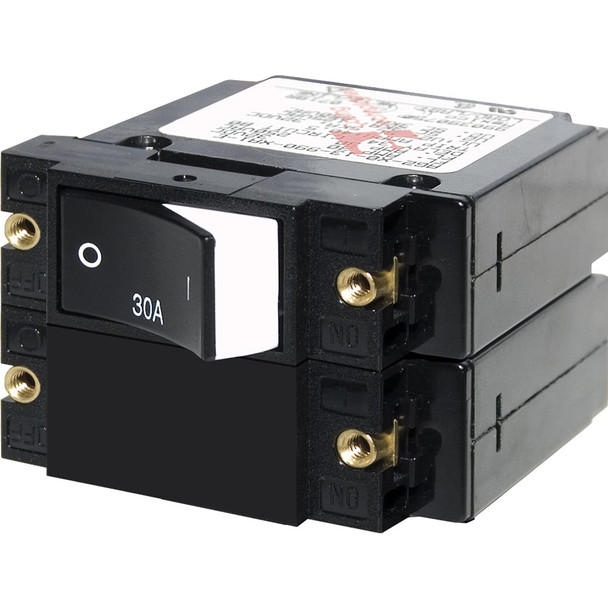

Blue Sea Systems A-Series Raised Rocker Circuit Breaker - Double Pole 30A

• Color actuator indicates "OFF" position

• "Trip Free" design cannot be held "ON" during fault current condition

• International ON/OFF symbols support vertical or horizontal mounting

• Amperage: 30A AC / 30A DC

• Actuator Style: Raised Rocker

• Poles: 2

• Maximum Voltage: 120V AC / 240V AC / 32V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC

• Minimum Operating Temperature: -40 C

• Maximum Operating Temperature: 85 C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Screw Terminal Torque: 14 in-lb (1.58 Nm)

• Switching Cycles: 10000

• Terminal Screw: #10-32 Stainless Steel

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems model 7574 A-Series raised rocker circuit breaker provides reliable overcurrent protection for electrical systems up to 30 amps. Designed with a durable magnetic hydraulic trip mechanism, this double-pole breaker ensures safe disconnection during fault conditions and prevents accidental reactivation with its trip-free design. The raised rocker actuator features a color indicator that clearly shows the "OFF" position, enhancing safety and ease of use. Its versatile mounting options include support for both vertical and horizontal installation, thanks to internationally recognized ON/OFF symbols that guide proper setup.
Built to operate efficiently across a wide temperature range from -40°C to 85°C, this breaker is suitable for various demanding environments. The breaker can handle maximum voltages of 120V or 240V AC, and up to 32V DC, with an impressive interrupt capacity of 3000A at 240V AC and 5000A at 32V DC, providing ample protection for critical electrical circuits. The breaker features #6-32 stainless steel mounting screws and #10-32 stainless steel terminal screws, ensuring secure connections under demanding conditions. With a switching cycle durability of 10,000 operations, this breaker offers long-term performance and reliability.
Constructed by Blue Sea Systems, the model 7574 is a compact yet robust component suitable for marine, RV, and industrial applications. Its lightweight design, weighing just 0.38 pounds, makes it easy to incorporate into various systems without adding significant weight. Please note that this product may contain chemicals such as DEHP, which are recognized for potential health risks; proper handling and disposal are advised. For more details, visit P65Warnings.ca.gov.

Features:

• Color actuator indicates 'OFF' position for clear status visibility

• Trip-free design prevents re-engagement during fault conditions

• Supports vertical or horizontal mounting with international ON/OFF symbols

• Magnetic hydraulic trip mechanism ensures reliable operation

• Maximum voltage ratings of 120V/240V AC and 32V DC

• High interrupt capacity of up to 5000A at 32V DC

• Durable construction with stainless steel mounting and terminal screws

• Long operational lifespan with 10,000 switching cycles

• Suitable for demanding environments with wide temperature operation range
