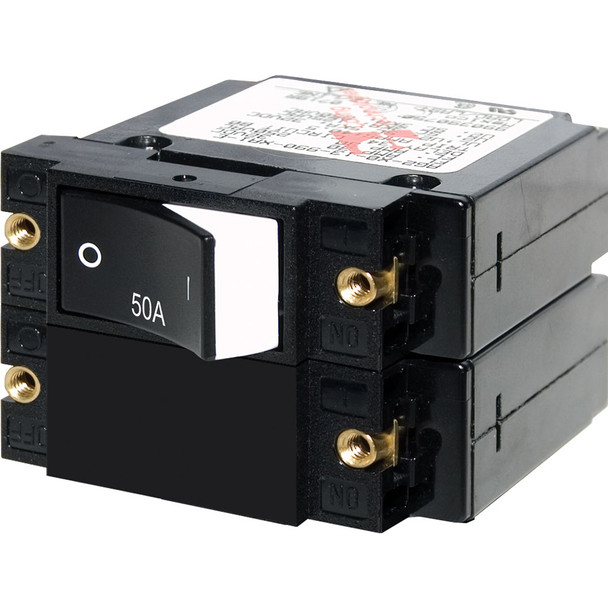

Blue Sea Systems 7577 A-Series 50A Double Pole Raised Rocker Circuit Breaker

• Color actuator indicates "OFF" position

• "Trip Free" design cannot be held "ON" during fault current condition

• International ON/OFF symbols support vertical or horizontal mounting

• Amperage: 50A AC / 50A DC

• Actuator Style: Raised Rocker

• Poles: 2

• Maximum Voltage: 120V AC / 240V AC / 32V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC

• Minimum Operating Temperature: -40 C

• Maximum Operating Temperature: 85 C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Screw Terminal Torque: 14 in-lb (1.58 Nm)

• Switching Cycles: 10000

• Terminal Screw: #10-32 Stainless Steel

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7577 A-Series raised rocker circuit breaker is designed for reliable overcurrent protection in both AC and DC electrical systems. With a 50A rating, this double pole breaker provides efficient circuit interruption, ensuring safety and system integrity in various applications. Its raised rocker actuator features a color indicator that clearly shows the "OFF" position, allowing for quick and easy status recognition. The breaker's "Trip Free" design prevents it from being held "ON" during fault conditions, enhancing safety by ensuring it trips automatically when necessary. Its international ON/OFF symbols support versatile mounting orientations, whether vertical or horizontal, simplifying installation in diverse setups.

Features:

• Color actuator indicates "OFF" position for clear status visibility

• "Trip Free" design prevents the breaker from being held "ON" during fault conditions

• International ON/OFF symbols support both vertical and horizontal mounting

• Magnetic hydraulic trip mechanism ensures rapid response to fault currents

• High interrupt capacity of up to 3000A at 240V AC and 5000A at 32V DC for enhanced safety
