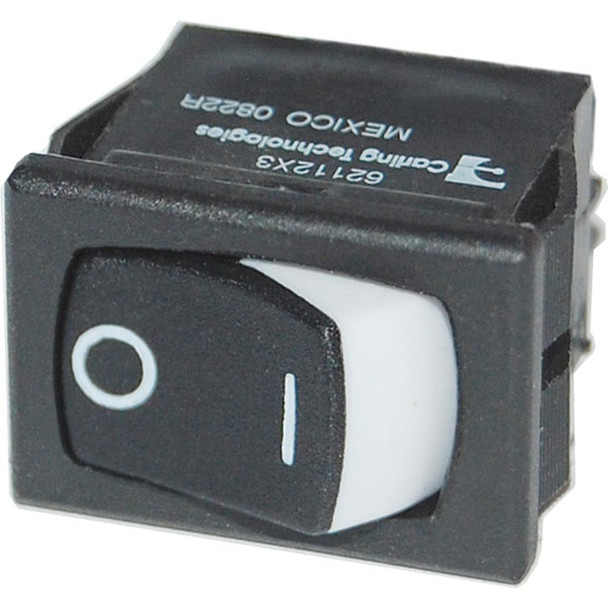

Blue Sea Systems 7490 360 Panel Double Pole Single Throw Rocker Switch, ON-OFF

360 Panel - Rocker Switch DPST - ON-OFF

The 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.

This innovative design offers a wide choice of panel features, can accommodate future changes and permits rapid assembly. With options ranging from battery management to source selection, the 360 Panel System provides unmatched design flexibility.

For use in 360 panels in the following modules: Gauge, DC Push Button + Switch, and DC Battery Management

Specifications:

• Action*: ON-OFF

• Pole/Throw**: DPST

• Maximum Amperage***:8A @ 125V AC / 5A @ 12V DC / 5A @ 24V DC / 4A @ 250V AC

• Terminal Type: Wire Leads

• Terminal Size: 6.00" (152.4mm)

• Weight:0.08lb (0.04kg)

*Action () = Momentary ON

**Pole/Throw:
SPST - Single Pole/Single Throw
SPDT - Single Pole/Double Throw
DPST - Double Pole/Single Throw
DPDT - Double Pole/Double Throw

***Maximum Amperage - Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7490 360 Panel System features a versatile open-frame design that allows for easy mounting of a wide range of modules, making it suitable for various electrical control applications. This innovative panel system supports multiple functions within a single panel, enabling users to customize and expand their electrical setups efficiently. Its modular construction simplifies assembly and future upgrades, making it an ideal choice for complex or evolving electrical systems in vehicles, boats, or industrial environments. The system is compatible with modules such as gauges, DC push buttons, switches, and battery management units, providing comprehensive control options.

This particular switch is a double pole single throw (DPST) rocker switch with an ON-OFF action, rated for up to 8A at 125V AC and 5A at 12V or 24V DC, with a maximum of 4A at 250V AC. It features wire leads for secure connections and a terminal length of approximately 6 inches, ensuring ease of installation. The switch's compact design, weighing just 0.08 pounds, makes it suitable for space-constrained applications without sacrificing durability or performance. The DPST configuration allows simultaneous control of two circuits, ideal for switching power sources or controlling multiple components.

Designed for durability and reliability, this switch can handle typical electrical loads in marine, automotive, or industrial systems. Its open frame in the 360 Panel System accommodates future modifications, ensuring long-term usability. As with all electrical components, proper fuse sizing and wiring are essential to achieve maximum amperage ratings and safe operation. Please be aware of the product's chemical content, including potential exposure to di(2-ethylhexyl)phthalate (DEHP), which is known to cause health risks in certain regions. For safety information, visit P65Warnings.ca.gov.

Features:

• Open frame design allows for flexible module mounting and future upgrades

• Double Pole Single Throw (DPST) rocker switch with ON-OFF action

• Maximum amperage: 8A at 125V AC, 5A at 12V and 24V DC, 4A at 250V AC

• Wire leads for straightforward wiring and installation

• Compact weight of 0.08 pounds for space-efficient applications
