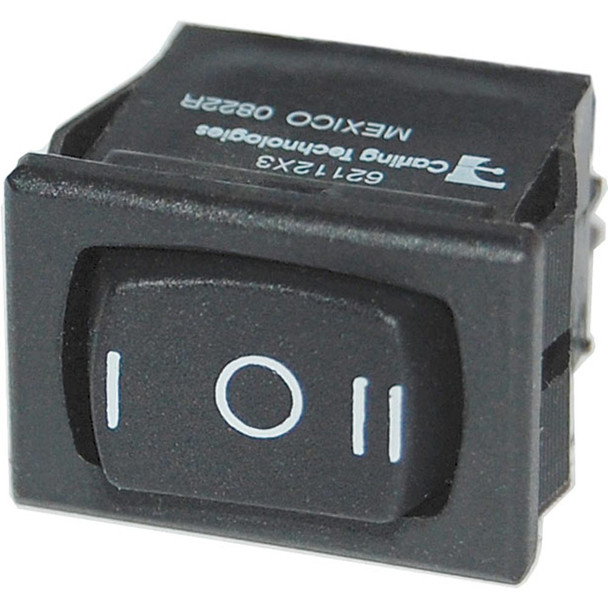

Blue Sea Systems 7495 360 Panel Double Pole Double Throw Rocker Switch (ON)-OFF-(ON)

360 Panel - Rocker Switch DPDT - (ON)-OFF-(ON)

The 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.

This innovative design offers a wide choice of panel features, can accommodate future changes and permits rapid assembly. With options ranging from battery management to source selection, the 360 Panel System provides unmatched design flexibility.

For use in 360 panels in the following modules: Gauge, DC Push Button + Switch, and DC Battery Management

Specifications:

• Action*: (ON)-OFF-(ON)

• Pole/Throw**: DPDT

• Maximum Amperage***:8A @ 125V AC / 5A @ 12V DC / 5A @ 24V DC / 4A @ 250V AC

• Terminal Type: Wire Leads

• Terminal Size: 6.00" (152.4mm)

• Weight:0.08lb (0.04kg)

*Action () = Momentary ON

**Pole/Throw:
SPST - Single Pole/Single Throw
SPDT - Single Pole/Double Throw
DPST - Double Pole/Single Throw
DPDT - Double Pole/Double Throw

***Maximum Amperage - Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7495 360 Panel features a versatile DPDT rocker switch with an (ON)-OFF-(ON) action, designed for use in multi-function panels. This open-frame design allows for easy mounting of various modules, making it ideal for applications such as battery management, source selection, and gauge control. Its innovative layout supports rapid assembly and flexibility for future modifications, ensuring a customizable and scalable panel system.

Constructed with wire lead terminals and rated for up to 8 amps at 125V AC or 5 amps at 12V and 24V DC, this switch offers reliable performance in demanding environments. The terminal size of 6 inches provides ample length for secure connections, and the compact weight of just 0.08 pounds makes it suitable for space-constrained setups. Its durable construction ensures longevity and dependable operation, even in challenging conditions.

Designed for versatility, the Blue Sea 7495 switch is compatible with various configurations, including SPST, SPDT, DPST, and DPDT, accommodating a broad range of control needs. Its open frame and broad selection of modules enable seamless integration into custom panels, providing a flexible solution for electrical system management. Whether used in marine, automotive, or industrial applications, this switch delivers consistent performance and easy installation for professional or DIY projects.

Features:

• Action: (ON)-OFF-(ON) momentary switch for multiple control states

• Pole/Throw: Double Pole Double Throw (DPDT) for versatile switching options

• Maximum Amperage: 8A at 125V AC, 5A at 12V and 24V DC, 4A at 250V AC for reliable operation

• Terminal Type: Wire leads for secure electrical connections

• Terminal Size: 6 inches long for flexible wiring options
