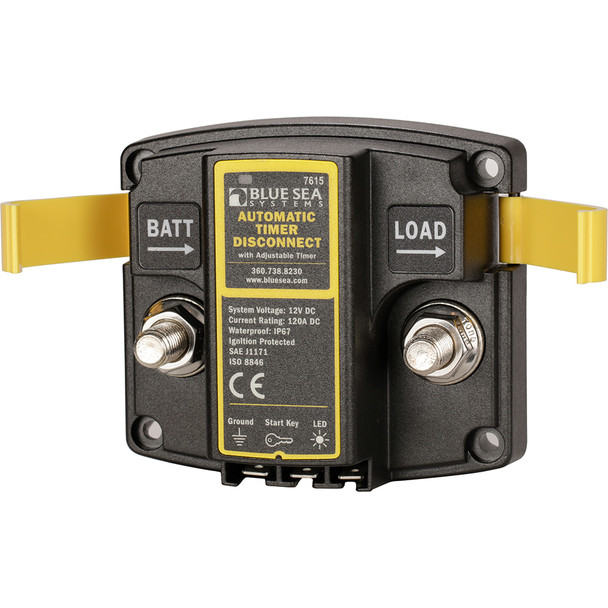

Blue Sea Systems 7615 ATD Automatic Timer Disconnect for 12V Battery Management

• 12V signal triggers relay to connect battery power to devices. When signal is removed the timer is activated and will disconnect devices after a preset time

• Disconnect can be triggered based on time, low voltage, or removal of 12V signal

• Low voltage will disconnect if time hasn_t been reached to preserve battery power

• Time and voltage options can be turned off to allow 12V signal based disconnect

• Clip-on cover insulates terminal connections

• One-piece stainless flange nuts ensure safe and secure connections

• Integrated LED indicates status

• Nominal Voltage:12V DC

• Amperage Operating Current: 175mA(Combine / 15mA(Open)

• Continuous Rating:120A

• Intermittent Duty: 210

• Terminal Stud Size: 3/8"-16 (M10)

• Time Range: 15min-4hrs

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7615 ATD Automatic Timer Disconnect is a reliable solution designed to help you manage your vehicle or equipment batteries efficiently. This device automatically shuts off connected devices based on adjustable time or voltage settings, helping to preserve battery life during extended periods of inactivity. It features a 12V signal trigger that energizes a relay to connect the battery to your devices. When the signal is removed, the timer activates, disconnecting the devices after a preset duration. This functionality ensures your battery isn't drained unnecessarily, especially in applications where preserving power is critical. The disconnect can be triggered by a specific time interval, low voltage levels, or the removal of the 12V signal, providing versatile control tailored to your needs. You can disable the time and voltage features to rely solely on the 12V signal for disconnection, offering additional flexibility. The device includes a clip-on cover that insulates terminal connections for safety and a one-piece stainless flange nut to guarantee secure, corrosion-resistant connections. An integrated LED indicator provides clear status visibility, making it easy to monitor operation at a glance. Designed for a nominal 12V DC system, the ATD disconnect has a continuous rating of 120 amps and a maximum intermittent duty of 210 amps. The terminal stud size is 3/8-inch-16 (M10), accommodating standard wiring sizes. The adjustable time range spans from 15 minutes up to 4 hours, allowing precise control over disconnection timing. This product is suitable for various vehicle and marine applications where battery management and power conservation are essential. For comprehensive installation instructions and safety information, refer to the owner’s manual available online. The Blue Sea Systems 7615 ATD Automatic Timer Disconnect offers a dependable and adaptable solution for maintaining battery health and preventing unnecessary power drain, ensuring your equipment remains ready when needed.

Features:

• Adjustable timer and voltage settings to optimize battery conservation

• 12V signal trigger activates relay to connect/disconnect battery power

• Disconnection based on time, low voltage, or signal removal

• Disable time and voltage controls for signal-only disconnection

• Insulated terminal connections with clip-on cover for safety

• Secure and corrosion-resistant stainless flange nuts

• LED indicator for real-time status updates

• Designed for 12V DC systems with 120A continuous rating

• Time range adjustable from 15 minutes to 4 hours
