Description

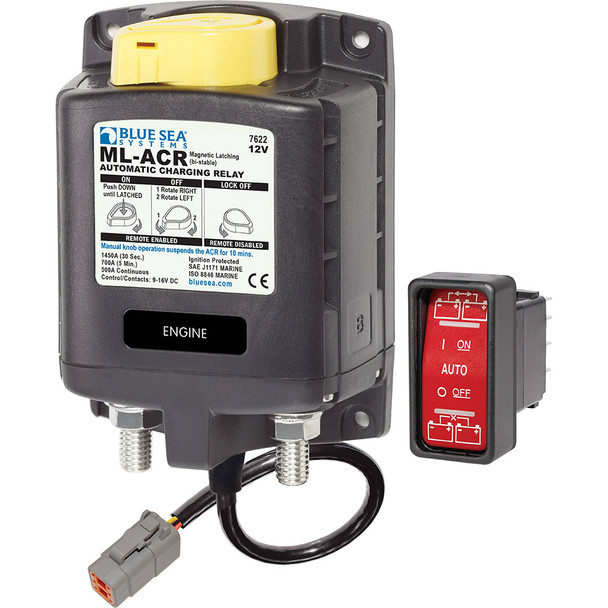

7622100 ML ACR Charging Relay 12V 500A with Manual Control Deutsch Connector
500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine.
Features:

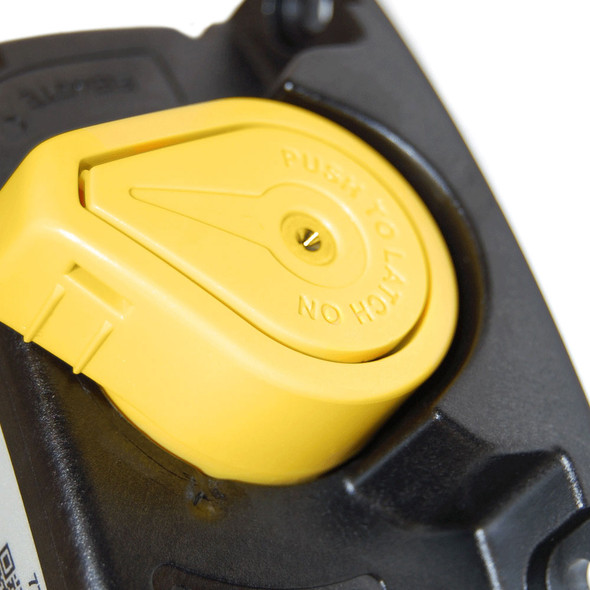

- Manual control switch provides an added level of safety allowing control with or without power, and offering LOCK OFF capability for servicing
- Automatically manages the charging of two large battery banks
- Allows paralleling of battery banks for emergency starting
- 500 Ampere continuous rating to support high-output alternators
- Magnetic Latch (ML)ACR draws very low current (<40mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
- Dual sensingsenses charge on both battery banks
- Start Isolation (SI)can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
- Engine Isolation (EI)can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
- Senses charging on two battery banks
- LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, or in Start or Engine isolation
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8" (22mm) stud length accepts multiple cable terminals
- Silver alloy contacts provide high reliability for switching live loads
- Label recesses for circuit identification
Specifications:
- Control Circuit Connection: Deutsch DTM
- Nominal Voltage: 12VDC
- Manual Control: Yes
- Engine Isolation: Yes
- Mounting: #10
- Start Assist: Yes
- Start Isolation: Yes
- Amperage Operating Current: 13mA
- Amperage Operating Current When Changing State: <7.0A
- Terminal Stud Torque: 140 in-lb (15.82 Nm)
- Continuous Rating: 500A
- Intermittent Rating: 700A (5 min)
- Cranking Rating 30 Seconds: 1450A DC
- Cable Size to Meet Ratings: 2x (4/0)
- Live Current Switching: 300A@12VDC
- Switching Cycles: 100,000
- Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
- Terminal Stud Length: 0.875" (22.23 mm)
- Terminal Stud Size: 3/8" - 16 (M10)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Blue Sea Systems 7622100 ML ACR Charging Relay is a high-capacity 12V device designed to automatically manage the charging and isolation of dual battery banks in demanding vehicle and marine applications. With a continuous rating of 500 amps, it supports high-output alternators and ensures reliable power distribution across large electrical systems. This magnetic latching (bi-stable) relay combines batteries during charging and isolates them during discharging or engine start, providing seamless power management without unnecessary current draw. Its robust construction features silver alloy contacts for excellent switching reliability and corrosion resistance, ensuring durability under harsh conditions. The relay includes a Deutsch DTM control circuit connection, and its manual control switch enhances safety by allowing operation with or without power, as well as a lock-off feature for maintenance purposes. Additional functionalities such as start and engine isolation configurations help protect sensitive electronics and optimize alternator output during engine operation. The LED indicators provide quick remote status updates for battery connection, voltage lockout, and isolation states, streamlining system monitoring. Designed with large, corrosion-resistant copper studs, the relay accommodates multiple cables for high-current applications, and its high cycle count of 100,000 switching operations ensures longevity in demanding environments. The relay's mounting and wiring specifications support secure installation and reliable electrical connections, making it suitable for both professional and DIY installations in trucks, boats, and other heavy-duty vehicles. Safety warnings regarding chemical exposure are included, emphasizing the importance of proper handling and disposal. Overall, the Blue Sea Systems 7622100 ML ACR Charging Relay offers a critical component for efficient and safe battery management in complex electrical systems, combining advanced features with rugged construction for dependable performance.
Features:
- Manual control switch provides an added level of safety, allowing control with or without power and offering lock-off capability for servicing
- Automatically manages the charging of two large battery banks
- Allows paralleling of battery banks for emergency starting
- Supports high-output alternators with a 500 amp continuous rating
- Magnetic latch (ML) ACR draws very low current in both 'ON' and 'OFF' states, with short bursts during state changes
- Dual sensing for accurate charging on both battery banks
- Configurable start isolation during engine cranking to protect electronics
- Engine isolation feature to safeguard engine electronics and maximize alternator output
- LED indicators for remote status monitoring of battery connection, isolation, and lockout states
- Heavy-duty 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- Accepts multiple cable terminals with 7/8" stud length
- Silver alloy contacts for high reliability switching live loads
- Label recesses for easy circuit identification
