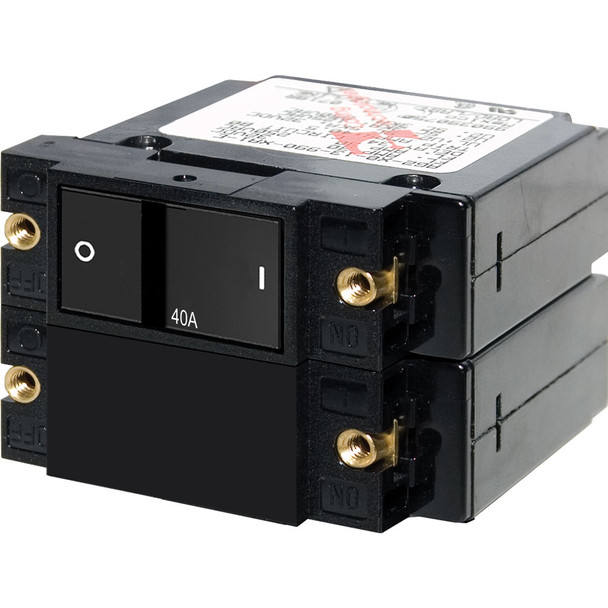

Blue Sea Systems A-Series Double Pole 40A Flat Rocker Circuit Breaker - Reliable Overcurrent Protection

• Color actuator indicates "OFF" position

• "Trip Free" design cannot be held "ON" during fault current condition

• International ON/OFF symbols support vertical or horizontal mounting

• Amperage : 40A AC / 40A DC

• Actuator Style: Flat Rocker

• Poles: 2

• Maximum Voltage: 120V AC / 240V AC / 32V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC

• Minimum Operating Temperature: -40 C

• Maximum Operating Temperature: 85 C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Screw Terminal Torque: 14 in-lb (1.58 Nm)

• Switching Cycles: 10000

• Terminal Screw: #10-32 Stainless Steel

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7416 A-Series Flat Rocker Circuit Breaker is designed to provide dependable overcurrent protection for 120V or 240V AC systems, as well as 32V DC applications. With a sleek flat rocker actuator, this double pole breaker simplifies circuit management while offering clear visual indication of the "OFF" position through a color-coded actuator. Its magnetic hydraulic trip-free design ensures the breaker cannot be held in the "ON" position during fault conditions, enhancing safety and system reliability. Mountable in either vertical or horizontal orientations thanks to international ON/OFF symbols, the breaker offers versatile installation options to suit various applications. Constructed with durable stainless steel mounting screws and rated for a maximum voltage of 240V AC or 32V DC, it can interrupt fault currents up to 3,000A at 240V AC and 5,000A at 32V DC, making it suitable for demanding electrical environments. This breaker is engineered to operate reliably across a wide temperature range from -40°C to 85°C, ensuring consistent performance in diverse conditions. It supports up to 10,000 switching cycles, providing long-term durability for routine circuit protection needs. Compact and lightweight, the Blue Sea Systems 7416 breaker is an essential component for marine, industrial, or RV electrical systems where safety, reliability, and ease of installation are paramount. Please note that this product contains chemicals known to cause reproductive harm, and proper handling is recommended. For detailed safety information, visit P65Warnings.ca.gov.

Features:

• Color actuator indicates "OFF" position for quick visual identification

• Trip Free design prevents holding the breaker "ON" during fault conditions

• Supports vertical or horizontal mounting with international ON/OFF symbols

• Rated for 40A AC/DC, suitable for various electrical systems

• Interrupt capacity of up to 3,000A at 240V AC and 5,000A at 32V DC for high fault current protection

• Operates reliably across a temperature range from -40°C to 85°C

• Supports up to 10,000 switching cycles for long-term durability

• Constructed with stainless steel mounting screws for corrosion resistance

• Compact and lightweight design for versatile installation
