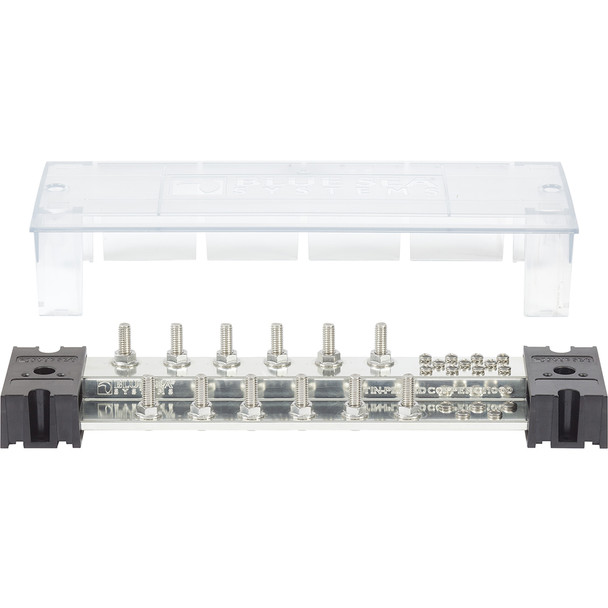

Blue Sea Systems PowerBar 1000 12 3/16-Inch Terminal Stud Busbar with Cover

PowerBar 1000 - 12 5/16" Terminal Studs w/Cover

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.

Features:

• 1,000 Amp busbar for large complex wiring systems

• Tin plated pure electrical copper for maximum conductivity

• Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars

• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables

• One-piece serrated flange nuts ensure correct and secure connections

• Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires

• Busbar may be cut to a shorter length to accommodate constricted spaces

• Bi-directional busbar end caps allow the ganging of additional busbars

• Snap on insulating cover meets ABYC and USCG requirements and includes label recess

Specs:

• Number of Terminal Studs: 12

• Continuous Rating: 1000A

• Bus Material: Tin-Plated Copper C11000

• Mounting Holes: Accepts #10 (M5) Screws

• Terminal Stud Size: 5/16

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems PowerBar 1000 offers a robust solution for complex wiring applications requiring high current capacity and organized connections. Designed with a 1,000 Amp busbar, it consolidates both large and small conductors at a single point, simplifying wiring layouts in demanding electrical systems. Constructed from tin-plated pure copper, the PowerBar ensures maximum conductivity and durability, making it ideal for marine, industrial, and automotive applications. Its stepped bus design provides two levels for attaching conductors, effectively doubling wire density compared to traditional busbars, which enhances space efficiency. Additionally, the elevations of the busbar and fuse blocks are aligned to accommodate common fuse blocks directly, eliminating the need for connecting cables and reducing clutter. Secure connections are guaranteed through one-piece serrated flange nuts, while stainless steel 8-32 screws with captive lock washers allow for reliable attachment of smaller gauge wires. The busbar can be easily cut to fit restricted spaces, offering flexibility during installation. End caps are bi-directional, enabling the ganging of multiple busbars to expand capacity as needed. The snap-on insulating cover not only meets ABYC and USCG safety standards but also features a label recess for easy identification. This product is designed for versatile use in demanding environments, providing a secure, organized, and high-capacity busbar solution for electrical systems requiring reliable conductor management and high current ratings.

Features:

• 1,000 Amp busbar suitable for large, complex wiring systems

• Tin-plated pure copper construction ensures optimal conductivity

• Stepped bus design with two elevations increases wire density

• Elevations match common fuse blocks, enabling direct attachment

• One-piece serrated flange nuts provide secure and correct connections

• Stainless steel 8-32 screws with captive lock washers for small gauge wires

• Busbar can be cut to shorter lengths for space-constricted installations

• Bi-directional end caps facilitate ganging of additional busbars

• Snap-on insulating cover complies with ABYC and USCG standards and includes label recess
