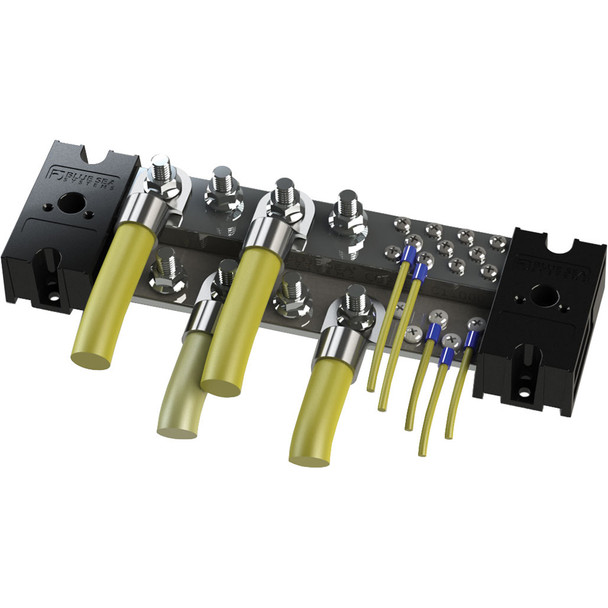

Blue Sea Systems PowerBar 1000 - 8 3/8 Inch Terminal Studs with Cover for High-Current Wiring

PowerBar 1000 - 8 3/8" Terminal Studs w/Cover

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.

Features:

• 1,000 Amp busbar for large complex wiring systems

• Tin plated pure electrical copper for maximum conductivity

• Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars

• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables

• One-piece serrated flange nuts ensure correct and secure connections

• Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires

• Busbar may be cut to a shorter length to accommodate constricted spaces

• Bi-directional busbar end caps allow the ganging of additional busbars

• Snap on insulating cover meets ABYC and USCG requirements and includes label recess

Specs:

• Number of Terminal Studs: 8

• Continuous Rating: 1000A

• Bus Material: Tin-Plated Copper C11000

• Mounting Holes: Accepts #10 (M5) Screws

• Terminal Stud Size: 3/8

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems PowerBar 1000 is a robust busbar designed to handle large and complex wiring systems with a continuous rating of up to 1,000 amps. Crafted from tin-plated pure copper, this busbar ensures optimal conductivity and durability. Its stepped bus design provides two different elevations for conductors, effectively doubling the wiring density compared to traditional bus bars, which simplifies cable management and reduces clutter in tight spaces. The PowerBar 1000 features eight terminal studs with 3/8 inch size, suitable for connecting multiple conductors and fuse blocks without the need for additional connecting cables. The busbar's elevations are aligned with common fuse blocks, making installation straightforward and reliable. One-piece serrated flange nuts secure the connections firmly, while stainless steel 8-32 screws with captive lock washers are included to secure smaller gauge wires, ensuring a safe and stable electrical connection. The busbar can be cut to a shorter length to fit constricted spaces, making it versatile for various applications. Bi-directional end caps allow for the ganging of multiple busbars, creating a scalable wiring solution. The snap-on insulating cover meets ABYC and USCG requirements, providing an added layer of safety and protection. It also includes a label recess for easy identification of circuits, enhancing overall system organization. This PowerBar is compatible with #10 (M5) mounting screws and is ideal for marine, industrial, or large-scale electrical setups where high current capacity and reliable connections are essential. Please note the product contains chemicals known to the State of California to cause reproductive harm. For full safety and handling information, visit P65Warnings.ca.gov.

Features:

• 1000 Amp busbar for large, complex wiring systems

• Tin-plated pure copper for maximum electrical conductivity

• Stepped bus design with two elevations for increased wiring density

• Elevations match common fuse blocks, allowing multiple fuse block attachments without cables

• Secure connections with one-piece serrated flange nuts

• Includes stainless steel 8-32 screws with captive lock washers for small wires

• Can be cut to fit constricted spaces

• Bi-directional end caps for ganging multiple busbars

• Snap-on insulating cover meeting ABYC and USCG standards with label recess
