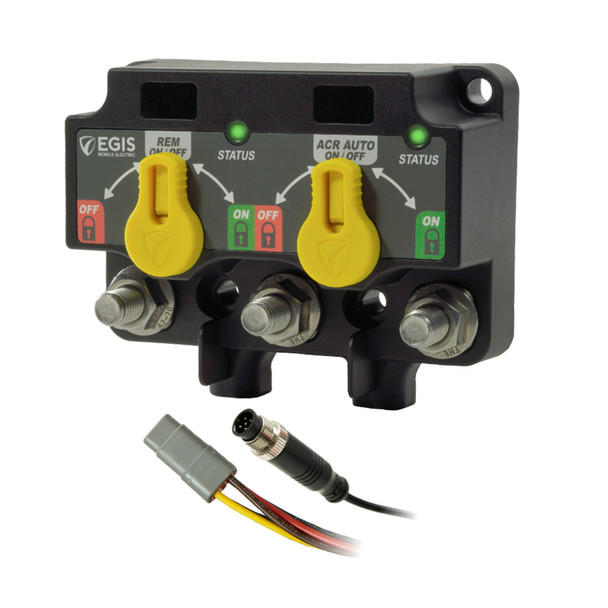

Egis Dual XD NMEA 2000 ACR/Relay with Knobs - 8 Position DT by Egis Mobile Electric

Dual XD - NMEA 2000 - ACR/Relay with Knobs - 8 Position DT

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Applications:

• Seamless NMEA 2000 Integration Control switches, monitor switch status, and battery voltage.
• Flexible Control Options Operate via NMEA 2000 or discrete analog inputs for added versatility.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
• Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

The Egis Dual XD NMEA 2000 ACR/Relay with Knobs (Part Number: 9821-8350) offers reliable and flexible control for marine electrical systems. Built with a sealed IP67/IP6K9K rated enclosure, it withstands harsh marine environments and high temperatures, allowing for versatile mounting options. The device features stainless steel cable lug studs and large mounting holes compatible with 1/4-20 or M6 hardware, ensuring secure installation in any setting. With a continuous current capacity of 500A and a cranking capacity of 1600A per switch, it supports all standard marine electrical loads efficiently. The intuitive manual control option provides straightforward operation, allowing users to easily monitor and override system states, which is a feature unique to Egis solutions. Programmability via simple dip switches offers significant flexibility for OEMs and installers, enabling customization to specific system requirements. The device's advanced bi-stable solenoid design results in 90-95% less off-state current compared to competitive products, reducing system power consumption and increasing efficiency. Applications include seamless NMEA 2000 integration for controlling switches, monitoring switch status, and battery voltage, making it ideal for modern marine systems. The Egis Dual XD supports control via NMEA 2000 or discrete analog inputs, offering versatility in operation. Its compact design reduces mounting space requirements by 35-75%, thanks to multiple solenoid assemblies that replace traditional electrical system layouts. The relay also facilitates sharing charging between two batteries and isolating batteries when no charge sources are present, preventing dead start batteries. Expandability is supported through link and cross-link busbars, allowing integration with additional Dual, Triple, or Single XD relays for managing two or three battery systems. Overall, the Egis Dual XD provides a durable, efficient, and flexible solution for marine electrical system management, ensuring reliable operation in demanding environments.

Features:

• Sealed construction rated IP67/IP6K9K with high-temperature electronics and stainless steel cable lug studs for durability and versatile mounting.

• Supports up to 500A continuous current and 1600A cranking per switch, suitable for all standard marine electrical systems.

• Manual control with intuitive operation to monitor and override system states, enhancing usability and safety.

• Simple dip switch programmability allows extensive customization for OEMs and installers.

• Significantly reduced off-state current (90-95%) compared to similar products, improving system efficiency.

• Seamless NMEA 2000 integration for control, status monitoring, and battery voltage display.

• Flexible operation via NMEA 2000 or discrete analog inputs, providing versatile control options.

• Compact design reduces mounting space by up to 75% and decreases overall weight with advanced bi-stable solenoid technology.

• Supports sharing charging between two batteries and isolating batteries to prevent dead start conditions.

• Expandable with link and cross-link busbars for integration with additional Dual, Triple, or Single XD relays, supporting multi-battery systems.
