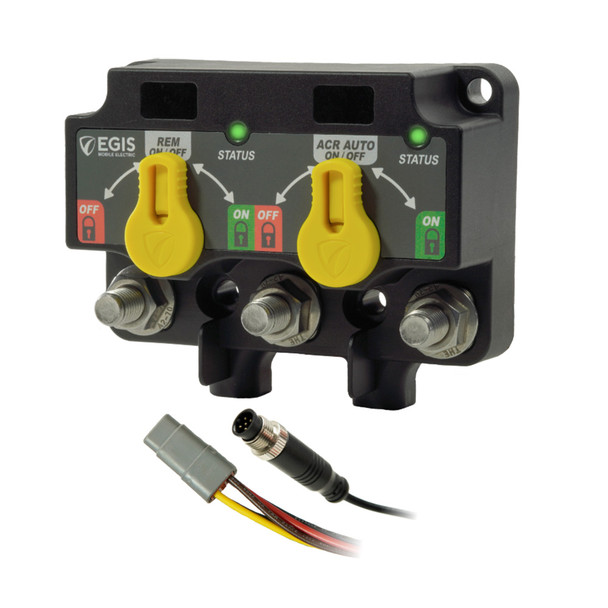

Egis Mobile Electric Dual XD NMEA 2000 Relay with Knobs – 8 Position DT

Dual XD - NMEA 2000 - Relay/Relay with Knobs - 8 Position DT

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Applications:

• Seamless NMEA 2000 Integration Control switches, monitor switch status, and battery voltage.
• Flexible Control Options Operate via NMEA 2000 or discrete analog inputs for added versatility.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
• Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

The Egis Mobile Electric Dual XD NMEA 2000 Relay with Knobs offers robust and versatile control for marine electrical systems. Engineered with a bullet-proof construction, it is sealed to IP67/IP6K9K standards, ensuring reliable operation in harsh marine environments. Its high-temperature electronics and stainless steel cable lug studs allow for versatile mounting options, while large mounting holes accommodate standard hardware, simplifying installation. This relay supports continuous currents up to 500 amps and cranking currents of 1600 amps per switch, making it suitable for all standard marine electrical configurations. Its intuitive manual control feature provides straightforward operation and clear indication of manual override states, a feature not commonly found in competing solutions. The relay's simple dip switch programmability offers significant flexibility for OEMs and installers, enabling customization to specific system requirements. Additionally, its advanced bi-stable solenoid design and multiple solenoid assemblies enable a reduction of 90-95% in off-state current compared to similar products, optimizing power efficiency and system performance. The Egis Dual XD seamlessly integrates with NMEA 2000 networks, allowing for control switches, status monitoring, and battery voltage readings directly from the network. It offers flexible control options, including operation via NMEA 2000 or discrete analog inputs, enhancing system versatility. The compact design results in a 35-75% reduction in mounting space and weight, thanks to its efficient layout and advanced components. It also supports sharing charging across two batteries and isolates batteries when no charge sources are present, preventing dead start batteries. Expandability is straightforward through link and cross-link busbars, enabling connection to additional dual, triple, or single XD relays for multi-battery systems. This relay is an essential component for marine electrical systems requiring reliable, flexible, and space-efficient control solutions.

Features:

• Bullet-proof construction sealed to IP67/IP6K9K standards with high-temperature electronics and stainless steel cable lug studs.

• Supports 500A continuous and 1600A cranking currents per switch, suitable for all standard marine electrical systems.

• Intuitive manual control with clear status indicators for manual override, enhancing operational awareness.

• Simple dip switch programmability allows flexible relay configuration for OEMs and installers.

• Achieves 90-95% reduction in off-state current, improving power efficiency compared to competitive products.

• Seamless integration with NMEA 2000 networks for control, status monitoring, and battery voltage readings.

• Flexible operation via NMEA 2000 or discrete analog inputs for versatile system control.

• Compact design reduces mounting space by 35-75% with advanced bi-stable solenoid technology.

• Supports sharing charge between two batteries and isolates batteries when no charge sources are present, preventing dead batteries.

• Expandable with Link and Cross-Link Busbars to accommodate additional dual, triple, or single XD relays for multi-battery systems.
