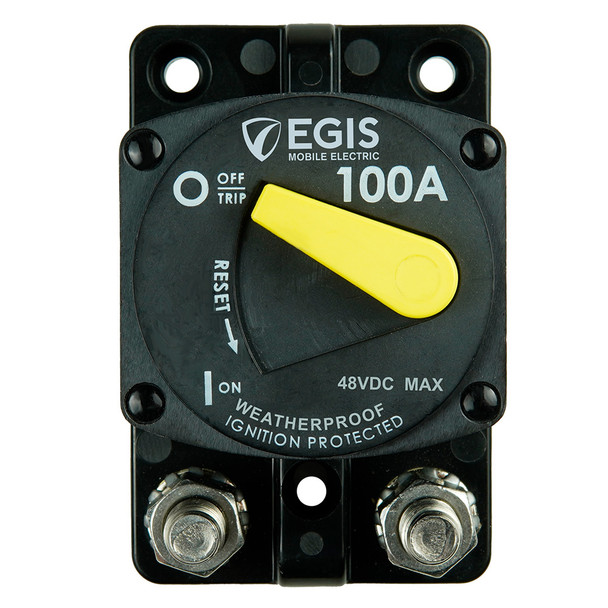

Egis Mobile Electric 100A Surface Mount 87 Series Circuit Breaker

100A Surface Mount 87 Series Circuit Breaker

This 100A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Applications:

• Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• IP66 sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC
• High Electrical / Manual Switching Endurance delivers 2,000 cycles at full current
• High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

• Continuous Current Amps: 100
• Max Voltage: 48
• Cycling Endurance: 2,000
• Interrupt Current @14 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP66

Focal Features:

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.

Reinforced Mounting

Ensures long-term structural reliability with reinforced mounting tabs built to withstand the stress of vibration.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 100A Surface Mount 87 Series Circuit Breaker is engineered to provide reliable over-current protection for electrical systems in various applications. Designed for both automatic circuit protection and manual switching, this breaker offers a compact and versatile solution suitable for mounting near battery banks or other critical components. Its robust construction ensures consistent performance and ease of maintenance, helping prevent wire insulation damage and potential electrical failures. Whether used in automotive, marine, or off-grid power systems, this breaker enhances system safety and operational efficiency.

Built with durability in mind, the Egis 87 Series features an IP66 rating, sealing the unit against dust and water intrusion for long-term reliability in harsh environments. The high voltage rating supports 12V and 24V DC systems comfortably, while providing advanced protection for 36V and 48V DC applications. Its high electrical and manual switching endurance—rated for 2,000 cycles at full current—ensures sustained performance over time, making it suitable for demanding use cases. The breaker’s ability to interrupt currents up to 5,000 amps at 14V DC and 3,000 amps at 28V DC offers additional security for large battery banks.

Equipped with high-visibility ON/OFF controls, reinforced mounting tabs, and corrosion-resistant stainless steel hardware, this circuit breaker is built for long-term stability even under vibration and challenging conditions. The reinforced mounting design ensures secure installation, while stainless steel components resist corrosion and vibration damage. Proudly manufactured in the USA with high-quality components, the Egis 100A surface mount circuit breaker is backed by a 4-year warranty, reflecting its reliability and Egis Mobile Electric’s commitment to quality. This product is ideal for applications requiring dependable circuit protection, manual control, and durable design for demanding environments.

Features:

• IP66 sealed against dust and water intrusion for reliable protection in harsh environments

• Supports 12V, 24V, 36V, and 48V DC systems with high voltage rating

• High electrical and manual switching endurance of 2,000 cycles at full current

• Interrupts up to 5,000 amps at 14V DC and 3,000 amps at 28V DC for large battery banks

• High-visibility ON/OFF controls for easy operation

• Reinforced mounting tabs for secure installation in vibration-prone conditions

• Corrosion-resistant stainless steel hardware and serrated flange nuts for durability

• Made in the USA with high-quality components, backed by a 4-year warranty
