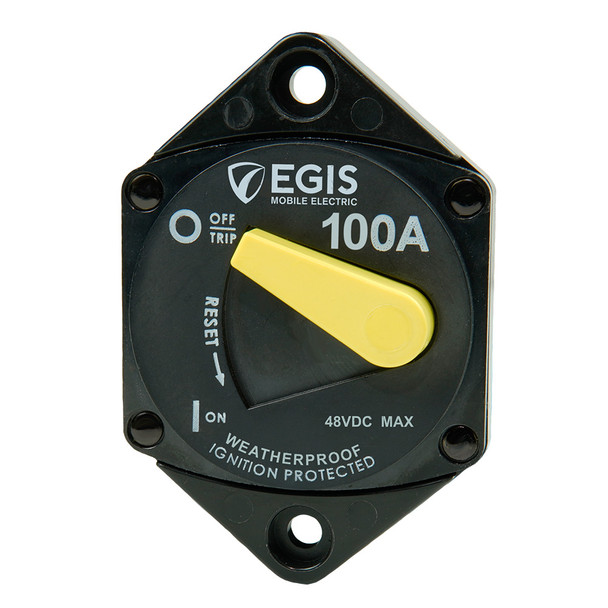

Egis Mobile Electric 4707-100 100A Panel Mount 87 Series Circuit Breaker

100A Panel Mount 87 Series Circuit Breaker

This 100A Egis Mobile 187 Series Circuit Breaker protects electrical circuits from short circuits and thermal overloads while providing robust manual circuit switching for reliable live load switching. A weatherproof case keeps the circuit protection safe from the environment, and it has high-voltage circuit interrupt current capability that protects circuits connected to large series or parallel-connected battery banks. Convenient round cutout style mounting ensures easy installation into the panels chosen.

Applications:

• Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
• Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High voltage (48 Vdc) rating - easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc
• High electrical and manual switching endurance delivers 2,000 cycles at full current
• High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-year warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

• Continuous Current Amps: 100
• Max Voltage: 48
• Cycling Endurance: 2,000
• Interrupt Current @14 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP66

Focal Features

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.

Circular Design

Compatible with circular cutout enables easy panel installation.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 4707-100 100A Panel Mount 87 Series Circuit Breaker offers reliable circuit protection and manual switching in a rugged, weatherproof design. It features a sealed IP66 case to safeguard against dust and water intrusion, making it suitable for demanding environments. This circuit breaker is engineered to handle high-voltage currents up to 48 Vdc, supporting applications with 12, 24, 36, and 48 Vdc power sources. Its high interrupt current capacity ensures safe disconnection of circuits connected to large battery banks, providing critical protection for renewable energy, electric vehicle, and industrial systems.

This circuit breaker combines automatic overload protection with manual on/off control, allowing easy load management and circuit isolation for maintenance. Its circular design with a compatible cutout simplifies panel installation, and the corrosion-resistant stainless steel hardware and serrated flange nuts ensure durability in harsh conditions. The Egis 87 Series is built to endure high cycling endurance, capable of switching at full current up to 2,000 times, which supports long-term operational reliability. Backed by a 4-year warranty, it demonstrates Egis Mobile Electric's commitment to quality and performance.

Designed for versatility, this breaker is ideal for protecting electrical systems from short circuits, thermal overloads, and accidental overcurrent events. Its high-visibility ON/OFF controls allow for quick status recognition, enhancing operational safety. The product is manufactured in the USA using high-quality components, ensuring compliance with strict standards. Whether used in mobile or stationary setups, this circuit breaker provides essential protection and control in a compact, durable package.

Features:

• IP66 sealed enclosure: Protects against dust and water intrusion for reliable operation in harsh environments

• High voltage (48 Vdc) rating: Supports 12, 24, 36, and 48 Vdc applications with advanced circuit protection

• Cycling endurance: Capable of 2,000 full-current cycles for long-term durability

• High interrupt current: Safely disconnects large battery bank circuits with up to 5,000 amps at 14 VDC and 3,000 amps at 28 VDC

• Manual on/off switch: High-visibility controls for easy load management and circuit isolation

• Circular panel mounting: Compatible with circular cutouts for straightforward installation

• Corrosion-resistant hardware: Stainless steel hardware and serrated flange nuts for vibration and environmental resistance

• Made in the USA: Constructed with high-quality components to ensure reliability and compliance
