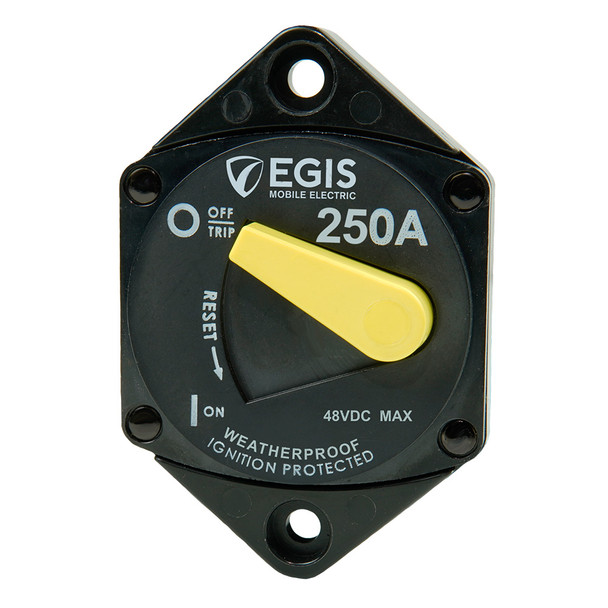

Egis Mobile Electric 4707-250 250A Panel Mount 87 Series Circuit Breaker

250A Panel Mount 87 Series Circuit Breaker

This 250A Egis Mobile 187 Series Circuit Breaker protects electrical circuits from short circuits and thermal overloads while providing robust manual circuit switching for reliable live load switching. A weatherproof case keeps the circuit protection safe from the environment, and it has high-voltage circuit interrupt current capability that protects circuits connected to large series or parallel-connected battery banks. Convenient round cutout style mounting ensures easy installation into the panels chosen.

Applications:

• Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
• Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems, regardless of the location

Features:

• IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High voltage (48 Vdc) rating - easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc
• High electrical and manual switching endurance delivers 2,000 cycles at full current
• High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-year warranty - Egis stands behind its products ability to meet the users needs

Specifications:

• Continuous Current Amps: 250
• Max Voltage: 48
• Cycling Endurance: 2,000
• Interrupt Current @14 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP66

Focal Features

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.

Circular Design

Compatible with circular cutout enables easy panel installation.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 4707-250 is a robust 250A panel mount circuit breaker designed for reliable electrical protection and manual switching in demanding environments. Its weatherproof IP66 sealed case ensures protection against dust and water intrusion, making it suitable for outdoor and harsh environments. This circuit breaker supports high-voltage applications up to 48 Vdc, including 12 and 24 Vdc systems, and offers advanced protection for larger battery banks connected in series or parallel configurations. Its high interrupt current capability ensures safe disconnection of circuits under high power conditions, safeguarding both equipment and personnel. The breaker features a circular design with compatibility for circular panel cutouts, facilitating straightforward installation. Constructed with stainless steel hardware and serrated flange nuts, it resists corrosion and vibration, ensuring longevity in challenging environments. The high-visibility ON/OFF controls provide easy operation, even in low-light conditions, and the device is rated for 2,000 switching cycles, supporting frequent manual operation without degradation. Manufactured in the USA, the Egis 250A circuit breaker combines durability, safety, and ease of installation for a wide range of industrial, marine, and renewable energy applications. Its comprehensive features help prevent electrical faults such as short circuits and overloads, protecting wiring and connected components from damage. With a four-year warranty, Egis Mobile Electric affirms its commitment to quality and user satisfaction, making this circuit breaker a reliable choice for critical electrical systems.

Features:

• IP66 sealed enclosure provides dust and water resistance for long-term reliability

• Supports high-voltage (48 Vdc) applications, including 12, 24, 36, and 48 Vdc systems

• High interrupt current capacity safely protects large battery banks with significant power

• Manual ON/OFF controls with high visibility for easy operation

• Durable construction with corrosion-resistant stainless steel hardware and serrated flange nuts

• Rated for 2,000 switching cycles for dependable manual operation

• Circular mounting design compatible with standard panel cutouts

• Weatherproof case enables installation in outdoor and harsh environments

• Made in the USA with high-quality components, backed by a 4-year warranty
