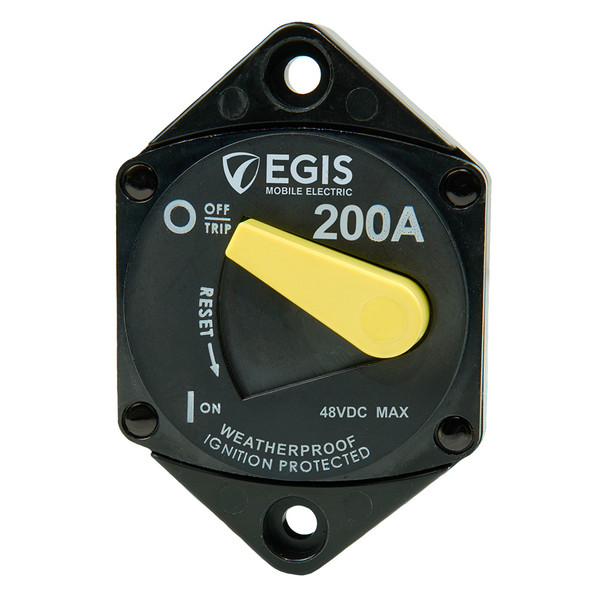

Egis Mobile Electric 4707-200 200A Panel Mount Circuit Breaker

200A Panel Mount 87 Series Circuit Breaker

This 200A Egis Mobile 187 Series Circuit Breaker protects electrical circuits from short circuits and thermal overloads while providing robust manual circuit switching for reliable live load switching. A weatherproof case keeps the circuit protection safe from the environment, and it has high-voltage circuit interrupt current capability that protects circuits connected to large series or parallel-connected battery banks. Convenient round cutout style mounting ensures easy installation into the panels chosen.

Applications:

• Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
• Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High voltage (48 Vdc) rating - easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc
• High electrical and manual switching endurance delivers 2,000 cycles at full current
• High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-year warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

• Continuous Current Amps: 200
• Max Voltage: 48
• Cycling Endurance: 2,000
• Interrupt Current @14 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP66

Focal Features

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.

Circular Design

Compatible with circular cutout enables easy panel installation.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 4707-200 200A Panel Mount Circuit Breaker is designed to provide reliable electrical protection and manual switching capabilities for various applications. Its robust construction ensures it can withstand harsh environments while safely protecting circuits from short circuits and thermal overloads. The weatherproof IP66 sealed case safeguards the internal components against dust and water intrusion, making it suitable for outdoor and exposed installations. This circuit breaker features a circular design with a compatible round cutout, facilitating straightforward panel installation. Its high-voltage circuit interrupt capacity enables it to protect large series or parallel-connected battery banks, ensuring system safety and longevity. The dual functionality of automatic circuit protection combined with manual ON/OFF switching offers users enhanced control and security in managing electrical loads. Constructed with corrosion-resistant stainless steel hardware and serrated flange nuts, this breaker is optimized for durability in demanding environments. It supports 12V, 24V, 36V, and 48V DC systems, making it versatile across many power setups. With an impressive cycling endurance of 2,000 cycles at full current, the Egis 4707-200 ensures long-term performance with minimal maintenance. Its high interrupt currents—5,000 amps at 14V DC and 3,000 amps at 28V DC—allow it to safely disconnect large power loads quickly and effectively. Backed by a 4-year warranty, this circuit breaker from Egis Mobile Electric is a dependable choice for battery management, electrical circuit protection, and load switching in various industrial, automotive, and renewable energy applications. Proudly manufactured in the USA with high-quality components, it embodies durability, safety, and ease of installation for professionals seeking robust electrical circuit protection.

Features:

• IP66 sealed enclosure provides protection against dust and water intrusion for reliable long-term operation

• Supports high-voltage (48 Vdc) applications with capacity for 12V, 24V, 36V, and 48V systems

• High electrical and manual switching endurance capable of 2,000 cycles at full current

• High interrupt current capacity: 5,000 amps at 14V DC and 3,000 amps at 28V DC for large battery banks

• Circular design with compatible round cutout for easy panel mounting

• High-visibility ON/OFF controls for quick operation

• Corrosion and vibration-resistant stainless steel hardware and serrated flange nuts for harsh environments

• Weatherproof IP66 rated case ensures protection against environmental elements

• Made in the USA, ensuring high-quality manufacturing standards
