Description

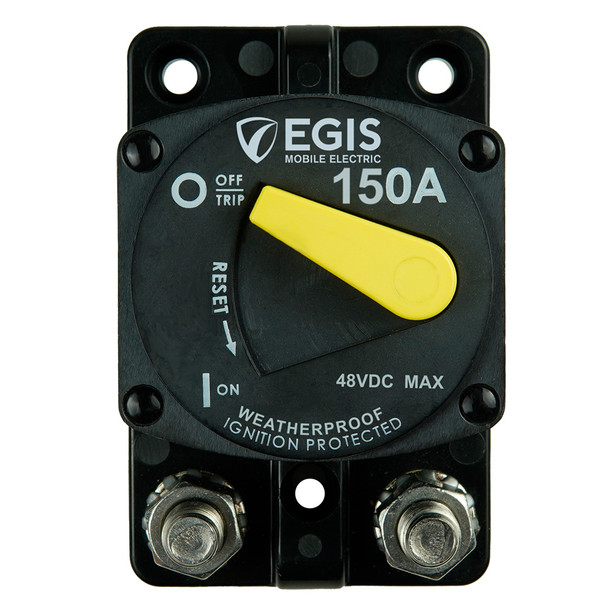

150A Surface Mount 87 Series Circuit Breaker
This 150A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
Applications:
- Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
- Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location
Features:
- IP66 sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
- High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC
- High Electrical/Manual Switching Endurance delivers 2,000 cycles at full current
- High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
- 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs
Specifications:
- Continuous Current Amps: 150
- Max Voltage: 48
- Cycling Endurance: 2,000
- Interrupt Current @14 VDC (Amps): 5,000
- Interrupt Current @28 VDC (Amps): 3,000
- Ingress Protection Rating: IP66
Focal Features
ON/OFF High Visibility Controls
Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.
Reinforced Mounting
Ensures long-term structural reliability with reinforced mounting tabs built to withstand the stress of vibration.
Stainless Steel Hardware / Serrated Flange Nuts
Corrosion and vibration resistance for harsh environment applications.
Proudly Made in the USA
Made in the USA of high-quality components.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Egis Mobile Electric 150A Surface Mount 87 Series Circuit Breaker is a durable and reliable solution designed to protect electrical circuits from short circuits and over-current conditions. Engineered with a robust construction, this circuit breaker features an IP66 sealing rating, ensuring resistance against dust and water intrusion, which makes it suitable for demanding outdoor and harsh environment applications. With a high voltage rating supporting 12V, 24V, 36V, and 48VDC systems, it provides versatile protection for a wide range of electrical setups. This breaker not only safeguards your wiring but also offers manual switching capabilities, allowing for convenient circuit isolation during maintenance or troubleshooting activities. Its compact design enables installation adjacent to battery systems regardless of space constraints, making it an ideal choice for mobile and stationary power systems alike.
Features:
- IP66 sealed enclosure prevents dust and water ingress, ensuring long-term reliability
- Supports high voltage applications up to 48 VDC, suitable for 12V to 48VDC systems
- High electrical/manual switching endurance of 2,000 cycles at full current for durability
- Interrupt current capacity of 5,000 amps at 14 VDC and 3,000 amps at 28 VDC, allowing protection of large battery banks
- Reinforced mounting tabs provide long-term structural integrity even under vibration
- Corrosion and vibration resistant stainless steel hardware and serrated flange nuts for harsh environments
- High-temperature rated for installation in diverse conditions
- Proudly made in the USA with high-quality components
