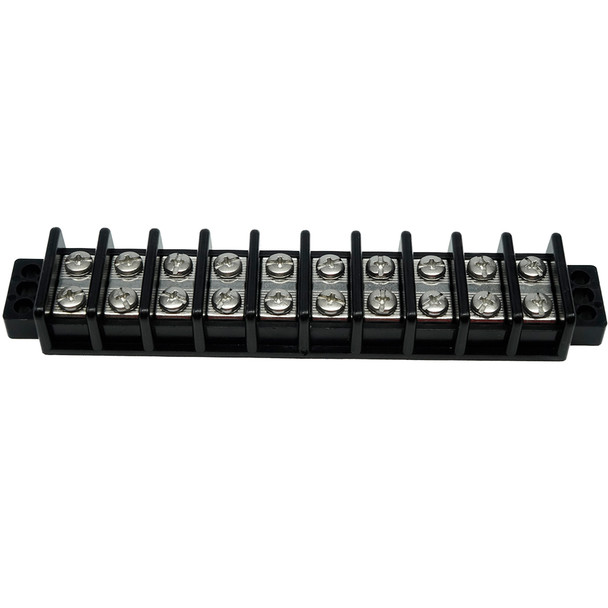

Egis Mobile Electric 2230-10 Marine-Grade Terminal Block - 30 Amp, 10 Circuits

Terminal Block - 30 Amp - 10 Circuit

• Marine-grade materials ensure long-lasting reliability in harsh environment applications
• Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
• 125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications

Features:

• Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
• Marine Grade Materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
• 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
• Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
• Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
• Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
• 4-Year Warranty: We stand behind our products ability to meet your needs.

Specifications:

• Continuous Current (Amps): 30
• Max Voltage (Vac/Vdc): 250
• Dielectric Strength: 2000Vac
• Hardware Material: Stainless Steel
• CE Marked: Yes
• ROHS Compliant: Yes

The Egis Mobile Electric 2230-10 terminal block is designed for reliable electrical connections in harsh environments. Crafted from marine-grade materials, this terminal block ensures long-lasting durability and resistance to corrosion, making it ideal for marine, industrial, and outdoor applications. Its robust construction incorporates tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials, providing a resilient solution for demanding conditions. The screw terminal connection pairs feature one input and one output screw connected to separate copper alloy bus bars, facilitating secure and organized wiring. This configuration supports multiple connection pairs, with options available up to 12, enabling flexible circuit management.

Features:

• Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair.

• Marine-grade materials, including tin-plated copper alloy conductors and stainless steel hardware, ensure long-lasting reliability in harsh environments.

• Rated for 125 volts AC or DC, supporting systems of 12, 24, 36, and 48 Vdc, as well as 120/240 Vac applications.

• Anti-rotation ribs on conductor strips help prevent wire terminal rotation, especially when strain relief distances are extended.

• High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.

• Bullet-proof construction with high-temperature insulation, corrosion-resistant conductors, and durable hardware for maximum longevity.

• Includes a 4-year warranty, reflecting confidence in product durability and performance.
