Description

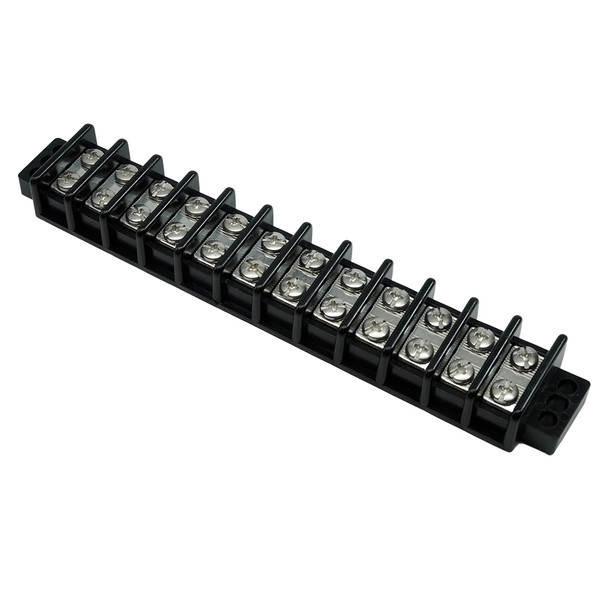

Terminal Block - 30 Amp - 12 Circuit
- Marine-grade materials ensure long-lasting reliability in harsh environment applications
- Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
- 125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications
Features:
- Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
- Marine Grade Materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
- 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
- Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
- Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
- Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
- 4-Year Warranty: We stand behind our products ability to meet your needs.
Specifications:
- Continuous Current (Amps): 30
- Max Voltage (Vac/Vdc): 250
- Dielectric Strength: 2000Vac
- Hardware Material: Stainless Steel
- CE Marked: Yes
- ROHS Compliant: Yes
The Egis Mobile Electric 2230-12 terminal block is a reliable solution designed for demanding marine and industrial applications. Constructed with marine-grade materials, this terminal block ensures long-lasting performance even in harsh environments. The robust design features stainless steel hardware and tin-plated copper alloy conductors, providing excellent conductivity and corrosion resistance. Its high-temperature insulation materials further enhance durability, making it suitable for continuous use in challenging conditions. The 12-circuit configuration allows for efficient power distribution, supporting systems operating at 125 volts AC or DC, including 12, 24, 36, and 48 Vdc, as well as standard 120/240 Vac applications. This versatility makes it an ideal choice for various electrical setups requiring secure and reliable connections.
Features:
- Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching pair
- Marine-grade materials including tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation ensure long-lasting reliability in harsh environments
- Supports 125 Volt AC or DC systems, including 12, 24, 36, and 48 Vdc, as well as 120/240 Vac applications
- Anti-rotation ribs on conductor strips reduce the risk of wire terminal rotation during installation or long strain relief distances
- High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground
- Constructed with bullet-proof high-temperature insulation, corrosion-resistant hardware, and high-quality conductors
- Covered by a 4-year warranty, ensuring dependable performance over time
