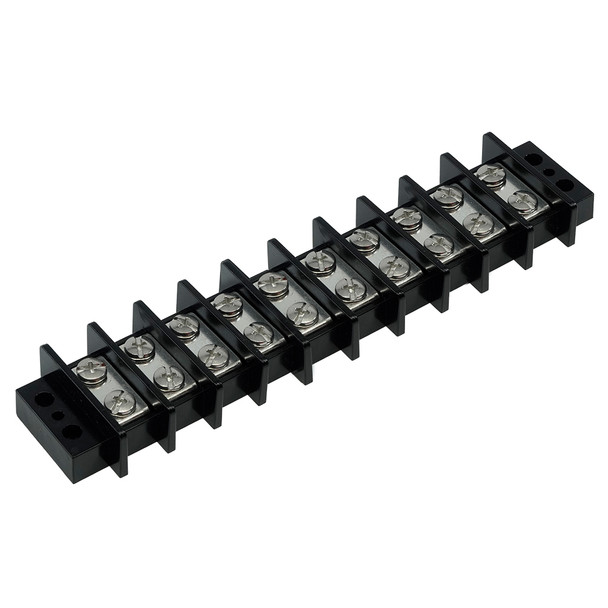

Egis Mobile Electric 2265-10 Marine-Grade 65 Amp 10-Circuit Terminal Block

Terminal Block - 65 Amp - 10 Circuit

• Marine-grade materials ensure long-lasting reliability in harsh environment applications
• Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
• 125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications

Features:

• Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
• Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
• 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
• Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
• Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
• Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
• 4-Year Warranty: We stand behind our products ability to meet your needs.

Specifications:

• Continuous Current (Amps): 65
• Max Voltage (Vac/Vdc): 250
• Dielectric Strength: 2000Vac
• Hardware Material: Stainless Steel
• CE Marked: Yes
• ROHS Compliant: Yes

The Egis Mobile Electric 2265-10 terminal block is designed for reliable electrical connections in harsh environments, making it ideal for marine, industrial, and heavy-duty applications. Constructed from marine-grade materials, this terminal block features tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation to ensure durability and long-lasting performance. Its robust construction resists corrosion and wear, providing peace of mind in demanding settings. This terminal block supports both AC and DC systems, rated at 125 volts, accommodating 12, 24, 36, and 48-volt DC systems along with standard 120/240-volt AC applications, making it versatile for various electrical configurations. The screw terminal connection pairs are designed with one input and one output screw connected to separate copper alloy bus bars, facilitating organized wiring and secure connections. Anti-rotation ribs on conductor strips help prevent wire terminal rotation during installation or maintenance, especially useful where strain relief distances are significant. Additionally, high insulation walls protect ring terminal splices from shorting to adjacent circuits or ground, enhancing electrical safety. This terminal block features a bullet-proof construction with high-temperature insulation, stainless steel hardware, and corrosion-resistant components, backed by a four-year warranty that underscores its reliability and quality. With a continuous current capacity of 65 amps and a maximum voltage rating of 250 volts AC/DC, it ensures safe and efficient power distribution. The terminal block also meets dielectric strength standards of 2000Vac and is CE marked and RoHS compliant, adhering to international safety and environmental standards. Its modular design allows for multiple connection pairs, available in configurations of 2, 4, 6, 8, 10, or 12 pairs, providing flexible options for complex wiring needs. Perfect for marine and industrial environments, the Egis Mobile Electric 2265-10 terminal block offers a durable, safe, and versatile solution for your electrical connection requirements.

Features:

• Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair

• Marine-grade materials including tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation ensure long-lasting reliability in harsh environments

• Supports 125 Volt AC or DC systems, compatible with 12, 24, 36, and 48 Vdc applications as well as 120/240 Vac systems

• Anti-rotation ribs on conductor strips reduce the risk of wire terminal rotation during installation or strain relief

• High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground

• Bullet-proof construction featuring high-temperature insulation, corrosion-resistant hardware, and durable materials

• Rated for continuous currents up to 65 amps with a maximum voltage of 250 volts AC/DC

• Meets dielectric strength standards of 2000Vac, CE marked, and RoHS compliant
