Description

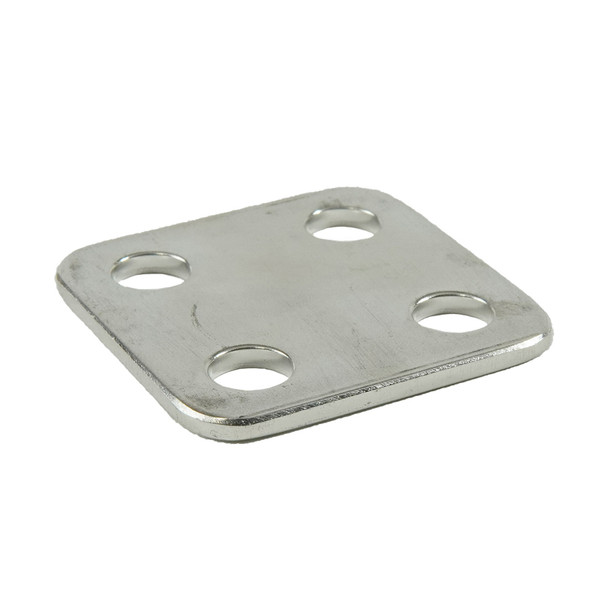

4 Hole Quad Shaped Busbar Connector
Link Together XD Single, Dual, and Triple XD Relays to multiple sealed fuse blocks or link fuse blocks together for compact installation.
Tin-Plated Copper to ensure reliable circuit connectivity and anti-corrosive features keep it last long term.
Specifications:
- Continuous Current (Amps): 500
- Max Voltage (Vdc): 72
- Material: Tin Plated Copper
- Size: 90mm x 90mm
- Thickness: 2.8 mm (1/8)
- Terminal Stud Hole Size: 10.5mm (3/8)
The Egis Mobile Electric 4 Hole Quad Shaped Busbar Connector is designed for reliable electrical connections in automotive and industrial applications. Made from high-quality tin-plated copper, this connector ensures excellent conductivity and resistance to corrosion, extending its service life. Its quad-shaped design allows for easy linking of XD Single, Dual, and Triple relays to fuse blocks or connecting multiple fuse blocks together, enabling a more compact and organized installation. This busbar connector is capable of handling continuous currents up to 500 amps and supports maximum voltages of 72 volts DC, making it suitable for high-current, low-voltage systems.
Constructed with a 2.8 mm (1/8 inch) thickness and featuring a terminal stud hole size of 10.5 mm (3/8 inch), this connector provides secure and stable connections. Its dimensions of approximately 3 inches by 3 inches make it versatile for various installation spaces while maintaining a compact profile. The connector’s durable material and robust design ensure long-term performance even in demanding environments, reducing the need for frequent replacements or maintenance.
Whether you're linking relays or fuse blocks, the Egis 4 Hole Quad Shaped Busbar Connector offers a reliable, efficient solution for managing electrical circuits. Its corrosion-resistant features and high current capacity make it ideal for automotive, RV, marine, and industrial electrical systems where reliable power distribution is essential.
Features:
- High purity tin-plated copper for reliable conductivity and corrosion resistance
- Quad-shaped design for linking multiple relays and fuse blocks
- Supports continuous current of 500 amps and max voltage of 72V DC
- Robust construction with 2.8 mm (1/8 inch) thickness and 10.5 mm terminal hole size
- Compact size of approximately 3 inches by 3 inches for versatile installation
