Description

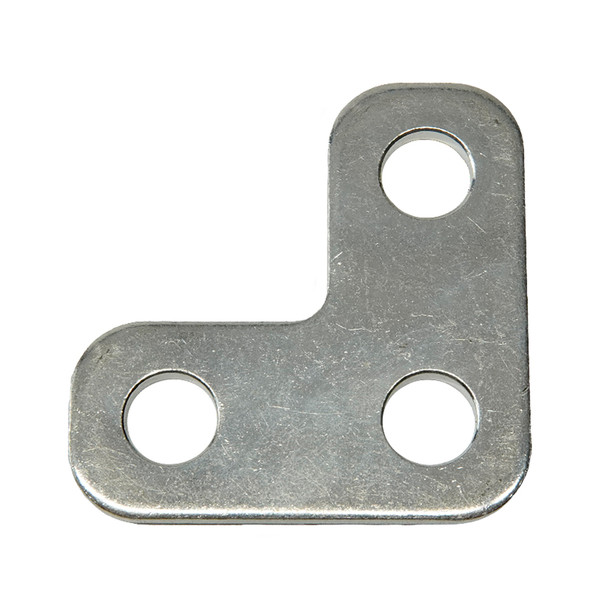

3 Hole L Shaped Busbar Connector
Link Together XD Single, Dual, and Triple XD Relays to multiple sealed fuse blocks or link fuse blocks together for compact installation.
Tin-Plated Copper to ensure reliable circuit connectivity and anti-corrosive features keep it last long term.
Specifications:
- Continuous Current (Amps): 500
- Max Voltage (Vdc): 72
- Material: Tin Plated Copper
- Size: 90mm x 90mm
- Thickness: 2.8 mm (1/8)
- Terminal Stud Hole Size: 10.5mm (3/8)
The Egis Mobile Electric 3 Hole L Shaped Busbar Connector is designed to facilitate reliable connections between XD single, dual, and triple relays, as well as fuse blocks, enabling streamlined and compact electrical installations. Its L-shaped design allows for easy linkage of multiple components in tight spaces, reducing wiring clutter and enhancing circuit organization. Built with high-quality tin-plated copper, this connector ensures excellent electrical conductivity and provides corrosion resistance for long-term durability, making it suitable for demanding electrical environments.
Constructed to handle continuous currents up to 500 amps and supporting a maximum voltage of 72V DC, this busbar connector is robust enough for heavy-duty automotive or industrial applications. Its dimensions offer a compact footprint, measuring approximately 3.54 inches by 3.54 inches with a thickness of 0.11 inches, making it versatile for various installation needs. The terminal stud hole size of 10.5mm (about 3/8 inch) accommodates standard wiring terminals, ensuring a secure and stable connection. Whether used for linking fuse blocks or connecting relays, the Egis 3 Hole L Shaped Busbar Connector provides a reliable, corrosion-resistant, and space-efficient solution for complex electrical systems.
Designed by Egis Mobile Electric, this part combines quality materials with precise engineering to deliver dependable performance in automotive, industrial, or marine applications. Its ease of installation, coupled with high current capacity and corrosion resistance, make it an essential component for professional electrical setups that demand durability and efficiency.
Features:
- Three-hole L-shaped design for versatile connections among relays and fuse blocks
- Constructed from tin-plated copper for reliable conductivity and corrosion resistance
- Supports continuous current up to 500 amps for heavy-duty applications
- Maximum voltage capacity of 72V DC suitable for various electrical systems
- Compact size with a terminal stud hole of 10.5mm for secure wiring connection
