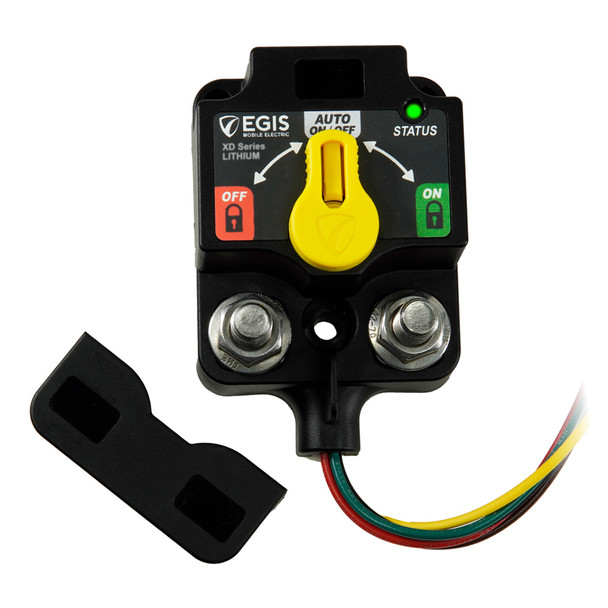

Egis Mobile Electric XD Flex L VSR with Knobs - 6-Pin DT Connector

XD Single Flex L VSR with Knobs - 6-Pin DT Connector

Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems, Where Required Charge / Discharge Voltage Settings Require Higher Available Settings

500 Amp Continuous Capability Per Relay / Extremely Compact Footprint

Available with or without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing

Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect

Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or Allow Automatic Operation Based on Voltage Sensing

Local and Remote LED Indicators Per Relay

Mechanical-Only Battery Switch Option for One or Multiple Relay Positions

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Plug Play Compatible with Legacy Competitor Products: Single, dual, and triple relay options available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
• 4 Year Industry-Leading Warranty

The Egis Mobile Electric XD Flex L VSR with Knobs is a highly reliable and versatile relay system designed specifically for lithium-based battery systems such as Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate. Capable of handling continuous currents up to 500 amps per relay, this compact device offers powerful performance in a small footprint, making it ideal for space-constrained applications. Its robust construction is sealed to IP67/IP6K9K standards, with high-temperature electronics and stainless steel cable lug studs, allowing for versatile mounting options in demanding environments. Whether installed in vehicles or stationary systems, the XD Flex L VSR ensures dependable operation and easy maintenance. The unit features optional front-facing manual override knobs that can be locked in ON or OFF positions for servicing, providing intuitive control over the relay states. The manual override feature simplifies operation and enhances safety during maintenance procedures. It also includes a flexible configuration through dip switches, enabling users to assign each relay as a disconnect, voltage sensing relay, or low voltage disconnect, thereby customizing the system to meet specific operational needs. Remote control inputs for ON/OFF/Auto functions allow for integration into automated systems, enabling relays to be forced closed, open, or operate automatically based on voltage sensing. Local and remote LED indicators are provided for real-time status monitoring of each relay, enhancing operational awareness. For applications requiring a mechanical-only battery switch, options are available for single or multiple relay positions, offering additional flexibility. The XD Flex L VSR is designed with advanced bi-stable solenoid technology, resulting in a 35-75% reduction in mounting space and weight compared to traditional relay assemblies. Compatibility with legacy products is ensured through plug-and-play design with DTM/ATM connectors, making upgrades seamless. The device consumes 90-95% less off-state current than comparable systems, optimizing power efficiency. Backed by a four-year industry-leading warranty, the Egis XD Flex L VSR offers durability, efficiency, and ease of integration for demanding electrical systems.

Features:

• Sealed to IP67/IP6K9K standards with high-temperature electronics for versatile mounting

• Intuitive manual control with lockable override knobs for safe servicing

• Flexible configuration using dip switches for relay functions such as disconnect, voltage sensing, or low voltage disconnect

• Compact design reduces mounting space by up to 75% with advanced bi-stable solenoid technology

• Plug-and-play compatibility with legacy systems, including DTM/ATM connectors and ML series relays

• Significantly lower off-state current (90-95%) compared to comparable products, enhancing power efficiency

• Remote control inputs for ON/OFF/Auto operation enable seamless system integration

• Local and remote LED indicators provide real-time relay status monitoring

• Mechanical-only battery switch options available for single or multiple relay configurations

• Durable construction suitable for demanding environments, rated IP67/IP6K9K
