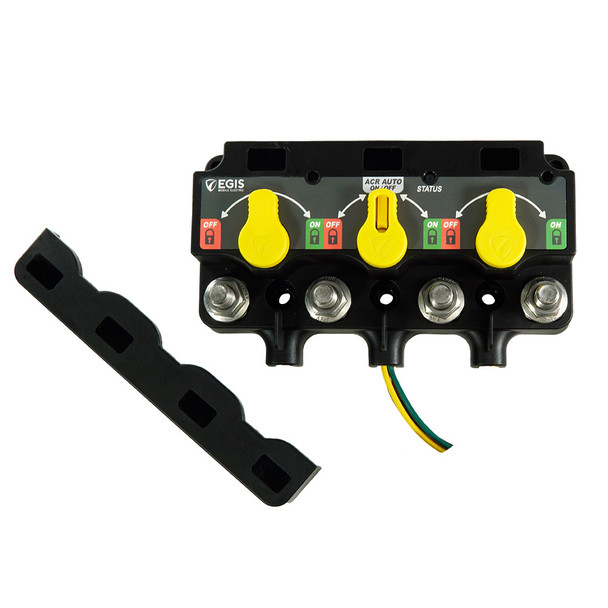

Egis Mobile Electric XD Series Triple Flex 2 Relay/VSR with Knobs - 12 P DT

XD Series Triple Flex 2 Relay/VSR/Relay with Knobs - 12 P DT

Applications/Problems This Solves

• Replaces three individual high-amp relays with One Compact Module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.
• Designed to Replicate Common Multi-Battery Switching and Charge Management Functions: Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented.
• Multiple Automatic Charging Relay (ACR) Into One Device:For 3-4 Battery Systems that require 2 or 3 ACRs, a single three-relay ACR provides a drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables.
• Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 3 or 4 battery systems with standard busbar interconnect accessories.

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Plug Play Compatible with Legacy Competitor Products: Single, dual, and triple relay options available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality.

The Egis Mobile Electric XD Series Triple Flex 2 Relay/VSR/Relay with Knobs offers a compact and reliable solution for high-current switching and charge management in demanding applications. Designed to replace three individual relays with a single, integrated module, this device significantly reduces space requirements, eliminates external link cable connections, and minimizes the risk of connections vibrating loose. Its clear manual controls allow operators to easily override and monitor the relay states, ensuring safer and more intuitive system management.

This relay module is ideal for multi-battery systems, providing seamless dual battery load switching and centralized automatic charging relay functions. It supports common multi-battery configurations with expandable link and cross-link busbars, making it suitable for complex setups involving 3 or 4 batteries. The integrated design simplifies wiring, reduces off-state quiescent current, and enhances overall system efficiency, especially when multiple ACRs are required.

Constructed with durability in mind, the Egis XD Series features IP67/IP6K9K sealing and high-temperature electronics, allowing installation in harsh environments. Heavy-duty stainless steel cable lug studs and large mounting holes compatible with standard hardware ensure secure mounting. The device’s simple dip switch programming offers versatile relay configuration options for OEMs and installers, enabling quick customization to meet specific operational needs. Its advanced bi-stable solenoid design reduces mounting space and weight by 35-75%, streamlining electrical layouts without sacrificing performance.

Designed for compatibility, the Egis XD Series is pin-for-pin compatible with legacy products, including ML Series Bi-stable Relays, supporting plug-and-play integration. Its low off-state current—up to 95% less than comparable solutions—significantly reduces power drain when the relays are inactive. This combination of robust construction, ease of use, and efficient power management makes the Egis XD Series Triple Flex 2 Relay/VSR an excellent choice for complex electrical systems requiring reliable high-current switching and charge control.

Features:

• Sealed to IP67/IP6K9K for durability in harsh environments

• Intuitive manual control for easy operation and override awareness

• Simple dip switch programmability for flexible relay configuration

• Reduces mounting space and weight by 35-75% with advanced bi-stable solenoid design

• Plug-and-play compatibility with legacy and competitor products via DTM/ATM connectors

• Significantly lowers off-state current, consuming up to 95% less power
