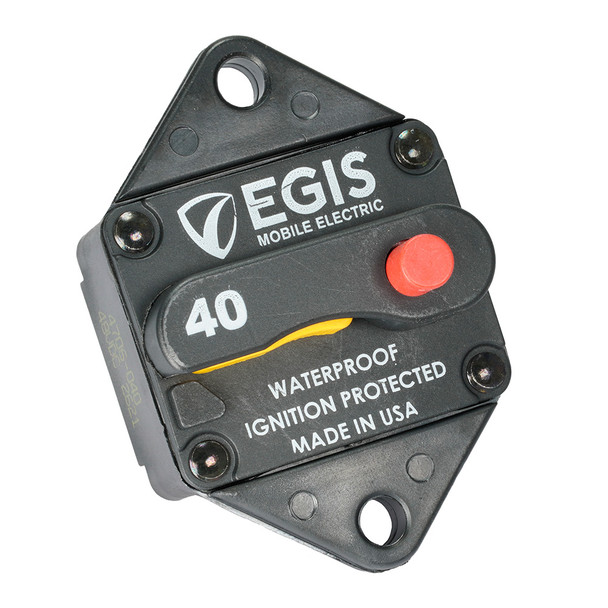

40A Panel Mount Circuit Breaker - 285 Series
This 40A Egis panel mount circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
Applications:
- Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
- Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location
Features:
- Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
- High Voltage (48 Vdc) Rating - easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.
- High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
- High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
- 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs
Specifications:
- Continuous Current Amps: 40
- Max Voltage: 48
- Cycling Endurance: 6,000
- Interrupt Current @16 VDC (Amps): 5,000
- Interrupt Current @28 VDC (Amps): 3,000
- Ingress Protection Rating: IP67
Focal Features:
ON/OFF High Visibility Controls
Sealed against dust and moisture penetration. The high temperature rating for all installation locations.
Panel Mount Flange
Provides rear/front panel installation options.
Stainless Steel Hardware / KEPS Locking Nuts
Corrosion and vibration resistance for harsh environment applications.
Proudly Made in the USA
Made in the USA of high-quality components.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Egis Mobile Electric 40A Panel Mount Circuit Breaker from the 285 Series is designed to safeguard electrical systems by preventing damage from short circuits and over-current loads. With its robust construction and high voltage rating, this breaker is suitable for a wide range of DC applications, including 12V, 24V, 36V, and 48V systems. Its compact design allows for easy integration into various panel configurations, making it an ideal choice for both industrial and mobile power setups. The breaker's sealed construction ensures protection against dust and water ingress, providing reliable performance in harsh environments. Features include high cycling endurance of 6,000 operations at full current, high interrupt capacity to handle large battery banks, and corrosion-resistant stainless steel hardware, ensuring longevity and dependable operation. The panel mount flange offers flexible installation options, whether on the front or rear of a panel, and the high-visibility ON/OFF controls facilitate quick operation during maintenance or emergencies. Built with high-quality components and manufactured in the USA, this circuit breaker is backed by a 4-year warranty, reflecting Egis's confidence in its durability and performance. The product complies with ingress protection rating IP67, making it suitable for demanding conditions where dust and water resistance are critical. Its high interrupt current capabilities allow it to safely disconnect circuits connected to large parallel battery banks, protecting both equipment and personnel from potential faults. Whether used in automotive, solar, or industrial applications, the Egis 40A Panel Mount Circuit Breaker offers a reliable, easy-to-install solution for circuit protection needs. Its durable design and versatile mounting options make it an essential component for ensuring electrical safety and system integrity over time.
Features:
- Sealed against dust and water ingress for reliable operation
- Supports 12V, 24V, 36V, and 48V DC systems with high voltage rating
- High cycling endurance of 6,000 cycles at full current
- High interrupt capacity to protect large battery banks
- Panel mount flange with front and rear installation options
- High-visibility ON/OFF controls for quick operation
- Corrosion and vibration-resistant stainless steel hardware
- Made in the USA with high-quality components
