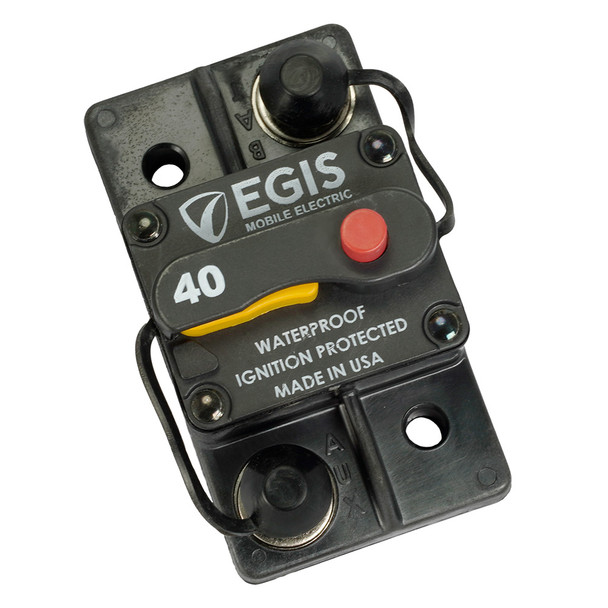

Egis Mobile Electric 40A Surface Mount Circuit Breaker - 285 Series

40A Surface Mount Circuit Breaker - 285 Series

This 40A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Applications:

• Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC
• High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
• High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-Year Warranty - Egis stands behind its products ability to meet the users needs

Specifications:

• Continuous Current Amps: 40
• Max Voltage: 48
• Cycling Endurance: 6,000
• Interrupt Current @16 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP67

Focal Features:

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high temperature rating for all installation locations.

Integrated Terminal Insulators

Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 40A Surface Mount Circuit Breaker from the 285 Series provides reliable electrical circuit protection for a variety of applications. Designed to safeguard against short-circuit events and over-current loads, this circuit breaker prevents wire insulation overheating and potential system failure. Its compact, surface-mount design makes it suitable for installation directly adjacent to battery systems, offering ease of access for circuit isolation and maintenance without taking up excessive space. Whether used in automotive, marine, or renewable energy systems, this breaker ensures consistent protection and operational safety. Its robust construction and sealed design make it resistant to dust and water ingress, ensuring long-term performance in harsh environments. The high voltage rating of up to 48 volts DC allows compatibility with 12, 24, 36, and 48 VDC systems, supporting a wide range of power configurations. With an electrical cycling endurance of 6,000 cycles at full current, the Egis 285 Series breaker demonstrates durability and reliability over extended use. Its high interrupt current capabilities—up to 5,000 amps at 16 VDC—protect large battery banks and high-power circuits effectively. Built with stainless steel hardware and serrated flange nuts, this breaker resists corrosion and vibration, making it suitable for demanding conditions. The integrated terminal insulators provide added safety by preventing inadvertent shorts between positive terminals and grounded surfaces. Featuring high-visibility on/off controls, the breaker allows for quick status monitoring and manual operation. Manufactured in the USA using high-quality components, the Egis 285 Series circuit breaker also comes with a four-year warranty, reflecting the manufacturer's confidence in its long-term performance. This product is sealed to meet IP67 standards, ensuring reliable operation even in dusty or wet environments. Designed to support advanced electrical systems, the Egis 40A Surface Mount Circuit Breaker combines safety, durability, and ease of installation for professional electrical setups across multiple industries.

Features:

• Sealed against dust and water intrusion for reliable long-term operation

• Supports 12V to 48V DC applications with high voltage rating

• Electrical and manual switching endurance of 6,000 cycles at full current

• High interrupt current capacity up to 5,000 amps at 16 VDC

• Corrosion and vibration resistant stainless steel hardware and serrated flange nuts

• High-visibility ON/OFF controls for quick status recognition

• Integrated terminal insulators prevent accidental shorts

• Made in the USA with high-quality components

• IP67 ingress protection rating for tough environments

• Four-year warranty for extended peace of mind
