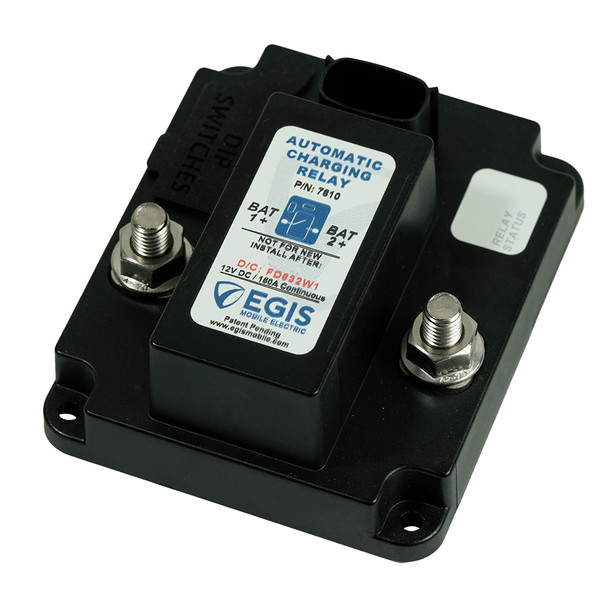

Egis Mobile Electric 7610-24 Automatic Charging Relay Plus, 160A, 24V

Automatic Charging Relay Plus - 160A - 24V

This 160A Egis automatic charging relay eliminates dead-start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.

Applications:

• Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance
• Protects Electrical System Cascading Faults with an optional lock-out from closing if one terminal is connected to a battery with a shorted cell

Features:

• Ultra-low power draw compared to typical ACRs (7-10 mA) vs. the 7610 ACR @ 1.3 mA will not deplete batteries even after extended electrical system downtime.
• Simple and robust installation - integrated sealed plug eliminates corrosion; includes Deutsch/Amphenol DTM connector harness
• Start to assist input option to ensure maximum cranking amps are available by allowing manually connecting batteries via a remote switch
• Bullet-proof construction - sealed unit, stainless steel hardware, and high-temperature materials allow mounting anywhere; Integrated thermal overload shutdown protection
• Additional low-amp output can be used to report device status remotely or drive a secondary relay for charge to a battery bank without a charge source (see examples)

Specifications:

• Continuous Current Amps: 160
• Voltage Range (VDC): 16 36
• Off-State Current Draw (mA): 1.3
• Interrupt Current (Amps): 240
• AC Closing Voltage Range (VDC): 25.8-27.2
• AC Opening Voltage Range (VDC): 24.2-25.6

Focal Features:

Top Side Dip Switches

Accessible after mounting for programming voltage settings and determining active features. Protected by self-retained cover.

Stainless Steel Self-Locking Hardware

100% non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.

Integral I/O Connector

Sealed Molex MX-150 connector eliminates the susceptibility to corrosion and vibrating loose of 1/4" quick connect terminals on competitive products.

Connection Options

Comes standard with a Deutsch DT/AT style connector harness. Provides three connection options (MX-150, DT/AT, and wire leads).

Easy Integration with RT Fuse Blocks (24 HR Circuits)

Optional EasyLink bus bars reduce the space and cost of connecting TH Series relays with RT Series fuse blocks.

LED Diagnostics

Indicates pending relay ON/OFF, under voltage, over voltage/temp, start isolation/assist, and output on/off status.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 7610-24 Automatic Charging Relay Plus is a robust and reliable device designed to optimize battery charging and protection in dual-battery systems. With a continuous current capacity of 160 amps and a voltage range from 16 to 36 volts, this relay ensures efficient power sharing between batteries while preventing dead-start conditions. Its sealed, stainless steel construction and high-temperature materials allow for versatile mounting options in demanding environments. The relay’s thermal overload shutdown feature adds an extra layer of safety, protecting your electrical system from potential damage due to overheating or faults.
This relay is particularly suitable for applications involving multiple engines or independent charge systems. It incorporates two separate start or engine isolation inputs, allowing users to isolate charge sources when both are active, thereby maximizing charging efficiency. An optional lock-out feature prevents relay closure if a shorted cell is detected in connected batteries, further safeguarding your system. The relay’s ultra-low power draw, just 1.3 mA in the off state, ensures minimal battery drain during extended periods of inactivity, making it ideal for long-term installations.
Installation is straightforward thanks to the integrated sealed plug, Deutsch/Amphenol DTM connector harness, and stainless steel hardware. The top-side dip switches provide easy access for programming voltage settings and activating features after mounting, protected by a self-retained cover. The integral I/O connector, utilizing a sealed Molex MX-150 connector, eliminates corrosion issues common with competing products. Additional features include a low-amp output for remote status reporting or secondary relay control, LED diagnostics for real-time device monitoring, and multiple connection options including MX-150, DT/AT, and wire leads. Optional EasyLink bus bars facilitate seamless integration with RT fuse blocks, reducing space and installation complexity.
This relay’s durable design, combined with its advanced features and easy integration options, makes it an excellent choice for maintaining reliable battery performance in demanding electrical systems. Whether used in automotive, marine, or industrial applications, the Egis 7610-24 ensures efficient, safe, and long-lasting operation for your electrical setup.

Features:

• Supports multiple engines or independent charge systems with dual start/engine isolation inputs

• Protects against cascading faults with optional lock-out for shorted cells

• Ultra-low power consumption of 1.3 mA to prevent battery drain during downtime

• Robust sealed design with stainless steel hardware and high-temperature materials

• Thermal overload shutdown for added safety

• Easy installation with integrated sealed plug and Deutsch/Amphenol DTM connector harness

• Top side dip switches for programming voltage settings and feature activation

• Sealed Molex MX-150 integral I/O connector resists corrosion and vibration

• Multiple connection options including MX-150, DT/AT, and wire leads

• LED diagnostics for real-time status, fault detection, and operational monitoring

• Optional EasyLink bus bars simplify integration with RT fuse blocks
