Description

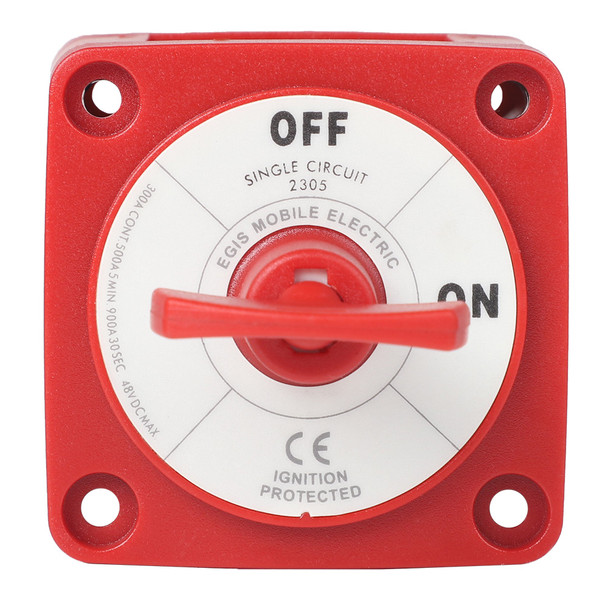

M-Series 300A Battery Switch Off/On Key Actuator
Sealed Against Dust Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.
Ignition Protected - Safe for installation in closed compartments with potential explosive gases.
Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.
Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.
Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.
Specifications:
- Maximum Voltage (Single Circuit): 48 Vdc
- Maximum Voltage (Selector / Dual Circuit): 32 Vdc
- Stud Size And Thread: 3/8-16
- Terminal Stud Torque: 120 in-lbs (13.6 N-m)
- Ring Terminal Size Acceptance: 3/8 (M10)
- Mounting Holes: #10 Screw
- Live Switching Rating: 25 Amps
- Ignition Protection Rating: SAE J1171 / ISO 8846
- Bulkhead / Panel - Mounting Hole Size: 2-5/8 / 2-5/16
- Cable Size to Meet Rating: 4/0 AWG
The Egis Mobile Electric M-Series 300A Battery Switch Off/On Key Actuator is designed for reliable circuit control in demanding environments. Its sealed construction provides protection against dust and water intrusion, ensuring long-term durability and consistent performance in harsh conditions. This feature makes it ideal for use in marine, industrial, and off-road applications where environmental exposure is common. The switch is ignition protected, allowing safe installation in closed compartments with explosive gases, meeting industry standards such as SAE J1171 and ISO 8846. Its rugged stainless steel hardware, serrated flange nuts, and high-temperature materials enhance resistance to corrosion and vibration, making it suitable for harsh environments. Flexible mounting options facilitate various installation configurations, allowing for versatile application in different vehicle or equipment setups. The switch supports a maximum voltage of 48 Vdc for single circuits and 32 Vdc for dual circuits, with a live switching rating of 25 amps, providing ample power handling capacity for demanding electrical systems. Its stud size of 3/8-16 and terminal stud torque of 120 in-lbs ensure secure connections, while the acceptance of 3/8 inch (M10) ring terminals simplifies wiring. The device features mounting holes compatible with #10 screws and accepts cable sizes up to 4/0 AWG, accommodating heavy-duty wiring requirements. With a compact profile, the Egis M-Series battery switch combines robust construction, safety features, and flexible installation options to ensure reliable operation in demanding environments, making it a valuable component for vehicle and equipment electrical systems.
Features:
- Sealed against dust and water intrusion for durability in harsh environments
- Ignition protected design suitable for installation in explosive gas environments
- Stainless steel hardware and serrated flange nuts resist corrosion and vibration
- Flexible mounting options support multiple installation configurations
- High-temperature materials ensure performance in demanding conditions
- Supports up to 48 Vdc for single circuits and 32 Vdc for dual circuits
- Live switching capacity of 25 amps for reliable power control
- Secure wiring with 3/8-16 stud size and 120 in-lbs torque
- Compatible with 3/8 inch (M10) ring terminals for wiring convenience
- Designed for heavy-duty wiring with acceptance of 4/0 AWG cables
