Description

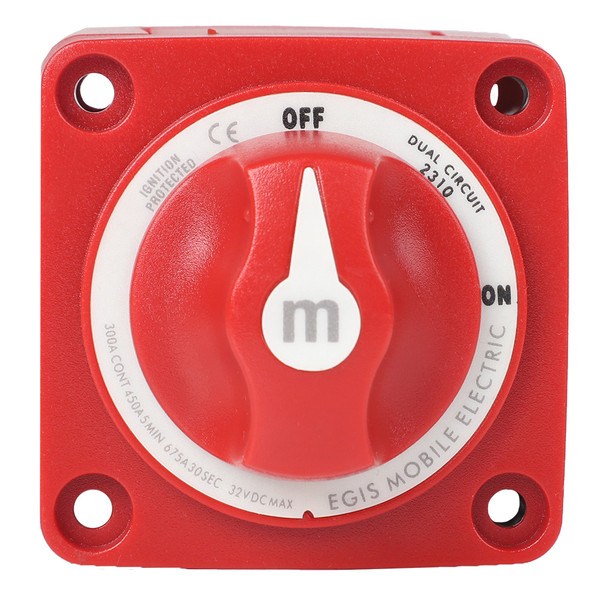

M-Series 300A Dual Circuit Battery Switch Off/On
Sealed Against Dust Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.
Ignition Protected - Safe for installation in closed compartments with potential explosive gases.
Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.
Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.
Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.
Specifications:
- Maximum Voltage (Single Circuit): 48 Vdc
- Maximum Voltage (Selector / Dual Circuit): 32 Vdc
- Stud Size And Thread: 3/8-16
- Terminal Stud Torque: 120 in-lbs (13.6 N-m)
- Ring Terminal Size Acceptance: 3/8 (M10)
- Mounting Holes: #10 Screw
- Live Switching Rating: 25 Amps
- Ignition Protection Rating: SAE J1171 / ISO 8846
- Bulkhead / Panel - Mounting Hole Size: 2-5/8 / 2-5/16
- Cable Size to Meet Rating: 4/0 AWG
The Egis Mobile Electric M-Series 300A dual circuit battery switch offers reliable and secure power management for automotive and marine applications. Designed with sealed construction, it is protected against dust and water intrusion, ensuring long-term durability in harsh environments. The switch is ignition protected, making it safe for installation in closed compartments containing potentially explosive gases, and complies with SAE J1171 and ISO 8846 standards. Its robust stainless steel hardware and serrated flange lock nuts enhance resistance to cable terminal loosening, especially in high-vibration conditions. Flexible mounting options provide versatility for various installation configurations, accommodating different vehicle or vessel layouts. Constructed to withstand demanding environments, this switch features high-temperature materials, ensuring consistent performance in extreme conditions. With a maximum voltage of 48 VDC for single circuits and 32 VDC for dual circuits, it is suitable for a wide range of electrical systems. Its stud size of 3/8-16 with a torque of 120 in-lbs ensures secure connections, and it accepts 3/8-inch ring terminals. The switch's live switching rating of 25 amps allows it to handle substantial current loads efficiently. Designed for ease of installation, it includes mounting holes compatible with #10 screws and a bulkhead mounting hole size of 2-5/8 inches, with cable compatibility up to 4/0 AWG. Whether used for engine starting, auxiliary power, or other electrical control needs, the Egis M-Series 300A dual circuit battery switch provides a dependable and versatile solution for demanding applications. Its compact design and corrosion-resistant materials make it an excellent choice for both marine and automotive environments seeking reliable power control and safety.
Features:
- Sealed against dust and water intrusion for reliable protection
- Ignition protected for safe installation in explosive-prone environments
- Serrated flange lock nuts improve resistance to cable terminal loosening
- Flexible mounting options for various installation configurations
- Designed with stainless steel hardware and high-temperature materials for harsh environments
- Maximum voltage of 48 VDC for single circuit and 32 VDC for dual circuit applications
- Stud size of 3/8-16 with a terminal stud torque of 120 in-lbs
- Accepts 3/8-inch ring terminals for secure electrical connections
- Live switching capacity of 25 amps for handling high current loads
- Includes mounting holes compatible with #10 screws and bulkhead mounting options
