Description

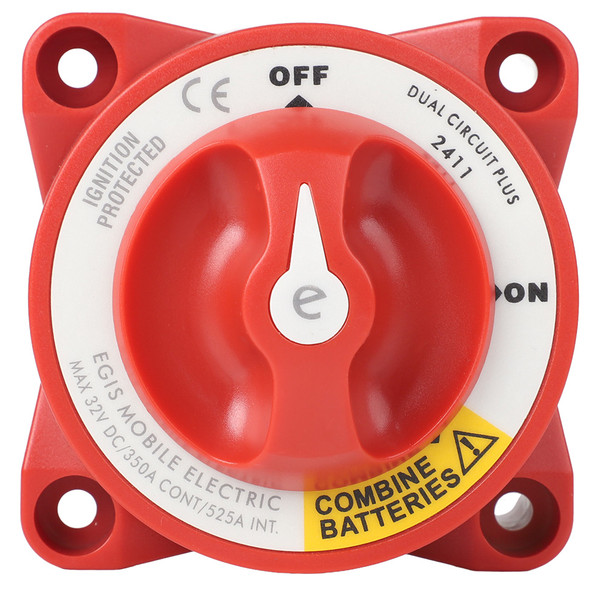

e-Series 350A Dual Circuit with Combine Battery Switch
Isolate and connect high-amperage loads with convenient surface- and rear-panel mounting options. The easy-to-turn knob provides a firm grip for selection. Sealed Against Dust Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.
Features:
- Serrated Flange Lock Nuts improve resistance to cable terminal loosening in high-vibration environments
- Ignition-protected safe for installation in closed compartments with potential explosive gases
- Harsh Environment Design with stainless-steel hardware, serrated flange nuts, and high-temperature materials
- Maximum Voltage (Single Circuit): 48Vdc
- Maximum Voltage (Selector / Dual Circuit): 32Vdc
- Stud Size And Thread: 3/8 -16
- Terminal Stud Torque: 140 in-lbs (15.8 N-m)
- Ring Terminal Size Acceptance: 3/8 (M10)
- Mounting Holes: 1/4 (M6) Screw
- Live Switching Rating: 25 Amps
- Ignition Protection Rating: SAE J1171 / ISO 8846
- Bulkhead / Panel - Mounting Hole Size: 3-5/8
- Cable Size to Meet Rating: 4/0 AWG
- Amperage Rating 30sec / 5min / Continuous: 700 / 525 / 350 Amps
The Egis Mobile Electric e-Series 350A Dual Circuit with Combine Battery Switch is designed to provide reliable high-amperage load management for mobile and industrial applications. Featuring a user-friendly, easy-to-turn knob, this switch allows for straightforward isolation and connection of circuits, making it ideal for complex electrical systems. Its surface- and rear-panel mounting options enable flexible installation, while the sealed design ensures protection against dust and water intrusion, ensuring long-term durability and dependable performance in harsh environments. Constructed with stainless-steel hardware and high-temperature materials, the switch withstands severe conditions, including vibrations and exposure to corrosive elements, making it suitable for demanding settings such as vehicle and marine applications. The device’s ignition protection rating (SAE J1171 / ISO 8846) guarantees safe operation in potentially explosive atmospheres, adding an extra layer of safety for critical electrical systems. The switch supports a maximum voltage of 48V DC for single circuits and 32V DC for dual circuits, with a robust stud size of 3/8-16 and a torque specification of 140 in-lbs to ensure secure connections. It accepts 3/8 (M10) ring terminals and features mounting holes compatible with 1/4 (M6) screws for versatile installation. The device is rated to handle a live switching current of 25 amps, with amperage ratings of up to 700 amps for 30 seconds, 525 amps for 5 minutes, and 350 amps continuously, making it suitable for high-current applications. The Egis e-Series switch is engineered to meet demanding industry standards, providing reliable circuit control and battery management for various mobile and stationary power systems.
Features:
- Serrated flange lock nuts improve resistance to cable terminal loosening in high-vibration environments
- Ignition-protected design ensures safe installation in compartments with potential explosive gases
- Harsh environment construction with stainless-steel hardware and high-temperature materials for durability
- Supports maximum voltage of 48V DC for single circuits and 32V DC for dual circuits
- Stud size and thread: 3/8-16 for secure connections
- Terminal stud torque of 140 in-lbs (15.8 N-m) for optimal tightening
- Accepts 3/8 (M10) ring terminal sizes for versatile wiring options
- Mounting holes compatible with 1/4 (M6) screws for flexible installation
- Live switching capacity of 25 amps for high-current switching
- Meets ignition protection standards SAE J1171 / ISO 8846
- Bulkhead and panel mounting hole size of 3-5/8 inches for versatile mounting options
- Suitable for cable sizes up to 4/0 AWG for high-current applications
- Amperage ratings of 700 amps for 30 seconds, 525 amps for 5 minutes, and 350 amps continuous for demanding power needs
