Description

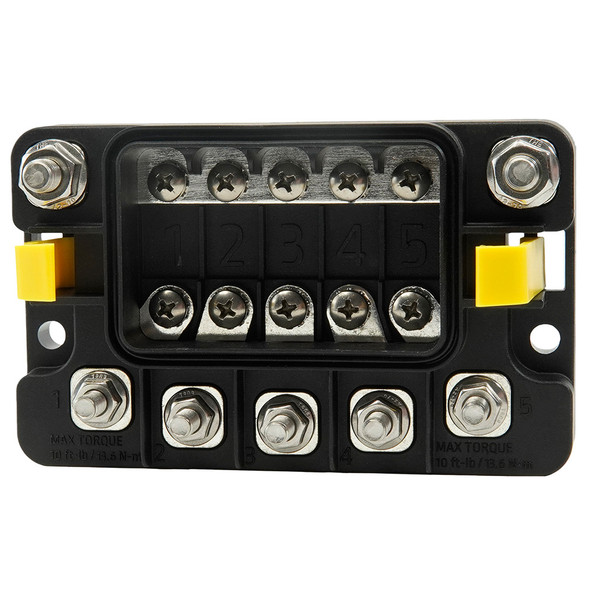

MIDI 5x Fuse Block with Sealed Cover
- Sealed marine grade construction fuse block compatible with 5 MIDI/AMI/BF type fused outputs
- Protects add-on circuits from accidental short circuits to frame ground or battery negative, or from overload events
- Expandable with dual, triple, and quad link busbars for plug-and-play install and complete switching/protection solutions
Features:
- Reduce Installation Space when combined with other Egis Mobile Electric power management devices and other sealed circuit breaker/fuse blocks.
- Expandable with Dual, Triple, and Quad Link Busbars for Plug and Play installation and Complete Switching/Protection Solutions.
- Bullet-proof Construction: Sealed to IP66/IP6K9K, high-temperature materials, Gore-Tex vent allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
- Protective Cover Stored 2 (Two) spare fuses and 4 (Four) screws. Easy to operate latching mechanism holds cover on securely.
Specifications:
- Total Continuous Current Amps: 500
- Max MIDIAMI Fuse Value (Amps): 200
- Ingress Protection Rating: IP67
- Ignition Protected (SEA J1171) Yes
- Output Stud Size: M6
- Input Stud Size: M8
The Egis Mobile Electric MIDI 5x Fuse Block with Sealed Cover is designed for reliable marine and automotive applications, offering robust protection and easy expandability. Constructed with high-quality, marine-grade materials, this fuse block is sealed to IP66/IP67 standards, ensuring resistance against water, dust, and harsh environmental conditions. Its sealed cover accommodates five MIDI/AMI/BF type fuses, providing secure and organized circuit protection for add-on components. The fuse block's high-temperature materials and Gore-Tex vent enable versatile mounting options, including in environments with extreme temperature variations. Stainless steel cable lug studs and large mounting holes that accept 1/4-20 or M6 hardware facilitate straightforward installation and secure attachment to your vehicle or vessel.
Designed for safety and efficiency, the fuse block protects circuits from accidental short circuits to ground or battery negative, as well as overload events. Its innovative design allows for expansion through dual, triple, and quad link busbars, enabling plug-and-play installation of additional switching and protection solutions. The protective cover not only safeguards the fuse area but also stores two spare fuses and four screws, simplifying maintenance and troubleshooting. With a total continuous current capacity of 500 amps and a maximum fuse value of 200 amps, this fuse block is suitable for demanding power management needs. The M6 output studs and M8 input studs support high-current connections, ensuring reliable electrical performance in critical systems. Whether used in marine, RV, or industrial applications, the Egis MIDI 5x Fuse Block offers a durable, scalable, and protected solution for managing electrical circuits efficiently.
Features:
- Sealed marine-grade construction fuse block compatible with 5 MIDI/AMI/BF type fused outputs
- Protects circuits from accidental short circuits and overload events
- Expandable with dual, triple, and quad link busbars for plug-and-play installation
- Sealed to IP66/IP67 standards with Gore-Tex vent for versatile mounting
- Stainless steel cable lug studs and large mounting holes for secure attachment
- Protective cover stores two spare fuses and four screws for easy maintenance
- High-temperature resistant materials ensure durability in harsh environments
- Supports high-current connections with M6 output studs and M8 input studs
- Ignition protected (SEA J1171) suitable for vehicle and marine applications
