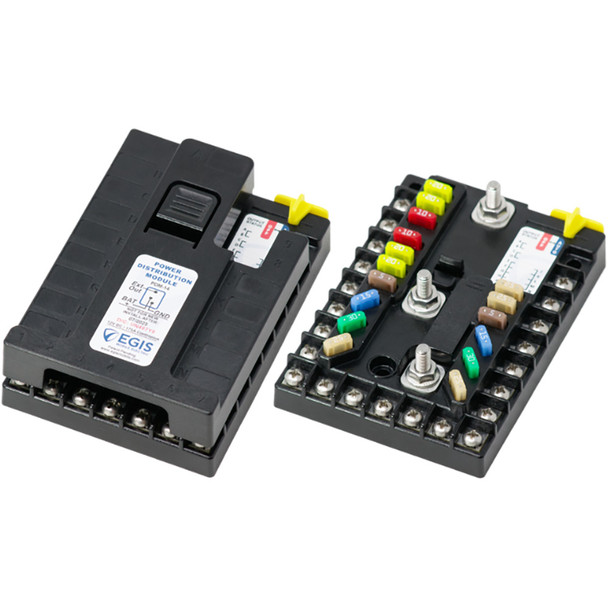

PDM 14 Circuit + Ground 175A 12V with Kill Switch
Designed for professional installers, this is a compact solution that combines battery protection, power switching, circuit protection, a ground bus, and an optional manual override switch. This includes three 45-amp high-power circuits and three output groups, which can be independently set to 24/7, ignition switched, or time delay. Expandable up to 31 fused outputs with RT or CT fuse blocks.
Features:
- For 12-volt systems, the allowed voltage range is 8-18 VDC
- Total continuous output limit: 175 amps
- Three load groups with a continuous output of 75-115 amps
- Optional time delay 0-10 hrs
- Optional low voltage protection 11-12.2 volts
- Offload current draw 1.3 mA
The Egis Mobile Electric PDM 14 Circuit + Ground 175A 12V power distribution module offers a professional-grade solution for managing electrical systems in vehicles and equipment. Designed for reliable performance, this compact unit integrates battery protection, power switching, circuit protection, a ground bus, and an optional manual override kill switch, all in a space-efficient design suitable for various applications. It features three high-power circuits rated at 45 amps each and provides three output groups that can be independently configured for 24/7 operation, ignition switching, or time delay, allowing for flexible system management. Expandable up to 31 fused outputs with RT or CT fuse blocks, this module supports scalable electrical setups for complex systems.
Operating within a voltage range of 8 to 18 volts DC, the Egis PDM 14 Circuit module maintains consistent performance in typical 12-volt systems. The total continuous output capacity is 175 amps, ensuring ample power distribution for multiple components. The three load groups collectively support continuous outputs between 75 to 115 amps, providing robust circuit protection and power delivery. An optional time delay feature can be set from zero to ten hours, enabling controlled power application during system startup or shutdown. Additionally, low voltage protection can be enabled to disconnect loads when system voltage drops below 11 volts, safeguarding batteries and electrical components. With an offload current draw of only 1.3 milliamps, this module minimizes parasitic drain when not actively in use, promoting battery longevity and system efficiency.
Constructed by Egis Mobile Electric, the PDM 14 Circuit + Ground 175A module is engineered for durability and ease of installation. Its compact size makes it suitable for tight spaces within vehicle dashboards, engine bays, or custom enclosures. Whether used in fleet vehicles, off-road equipment, or custom automotive builds, this power distribution unit enhances system reliability and safety, providing professional-grade circuit control and protection in a versatile package.
Features:
- For 12-volt systems, the allowed voltage range is 8-18 VDC
- Total continuous output limit of 175 amps
- Three load groups with a continuous output of 75-115 amps
- Optional time delay from 0 to 10 hours
- Optional low voltage protection at 11-12.2 volts
- Offload current draw of 1.3 milliamps
