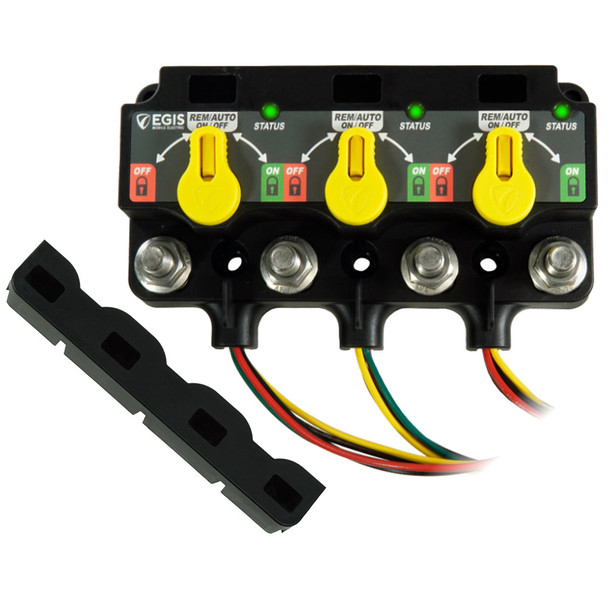

Egis Mobile Electric XD Flex L Triple Relay with Knobs - DTM Part 8630-1535

XD Flex L Triple (Relay/ACR/Relay) with Knobs - DTM

Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings

500 Amp Continuous Capability Per Relay / Extremely Compact Footprint

Available with or without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing

Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect

Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or to Allow Automatic Operation Based on Voltage Sensing

Local and Remote LED Indicators Per Relay

Mechanical-Only Battery Switch Option for One or Multiple Relay Positions

Features:

• Ultra-Low Power Draw: Lowest off-state current draw in the industry (1.3mA) combined.
• Simple Robust Installation:Sealed Deutsch/Amphenol DTM/ATM or DT/AT connectors available. Flying wire harnesses also available.
• Flexible Application Options: Install as a Remote Battery Disconnect Switch, Voltage Sensing Relay, or Low Voltage Disconnect. On/Off trigger via external signal and/or alternator voltage sense.
• Diagnostic Feedback:Via optional external LEDs control lines and on-board LEDs for each relay
• Bulletproof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Integrated thermal overload protection.
• Optional Manual Override provides power loss backup operation and the ability to lock OFF switched loads in order to service downstream circuits.
• Meets Stringent OEM Standards for electrical transient self-protection
• 4 Year Industry-Leading Warranty

The Egis Mobile Electric XD Flex L Triple (Part 8630-1535) is a high-capacity relay system designed specifically for lithium-ion, lithium polymer, and lithium iron phosphate battery systems where higher charge and discharge voltage settings are required. Each relay offers a continuous 500 ampere capability, making it suitable for demanding automotive and marine applications. Its compact footprint allows for versatile installation in tight spaces, providing reliable performance without sacrificing space. The relay features optional intuitive front-facing manual override knobs, which can be locked in the ON or OFF position for maintenance and servicing, ensuring safety and convenience during troubleshooting or system upgrades.
The flexible functionality of the Egis XD Flex L is achieved through dip switches, enabling it to serve as a relay, battery disconnect, voltage sensing relay, or low voltage disconnect. Remote control inputs facilitate automatic or manual operation, allowing the relay to be triggered via external signals such as vehicle alternator voltage or specific control commands. Local and remote LED indicators for each relay provide clear status updates, simplifying diagnostics and system monitoring. Additionally, a mechanical-only battery switch option allows for manual disconnection of one or multiple relay positions when needed.
Built with durability in mind, the unit features sealed construction with high-temperature materials suitable for mounting in various environments. Integrated thermal overload protection and transient self-protection meet stringent OEM standards, ensuring long-term reliability under demanding conditions. The low power draw of just 1.3 milliamps in the off state conserves battery power, making it an efficient choice for vehicle systems. Optional external LEDs and control lines enhance diagnostic feedback, providing detailed system status at a glance. The Egis XD Flex L Triple relay system also includes a 4-year industry-leading warranty, underscoring its quality and durability for professional installation and use.

Features:

• Ultra-Low Power Draw: Lowest off-state current draw in the industry (1.3mA) combined.

• Simple Robust Installation: Sealed Deutsch/Amphenol DTM/ATM or DT/AT connectors available. Flying wire harnesses also available.

• Flexible Application Options: Install as a Remote Battery Disconnect Switch, Voltage Sensing Relay, or Low Voltage Disconnect. On/Off trigger via external signal and/or alternator voltage sense.

• Diagnostic Feedback: Via optional external LEDs control lines and on-board LEDs for each relay.

• Bulletproof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Integrated thermal overload protection.

• Manual Override: Provides power loss backup operation and the ability to lock OFF switched loads for servicing downstream circuits.

• OEM Standards Compliance: Meets stringent standards for electrical transient self-protection.

• Industry-Leading Warranty: 4-year coverage for long-term reliability.
