Egis Mobile Electric XD Series Triple Flex 2 Mechanical Switch with Knobs and DTM Connector

XD Series Triple Flex 2 Mechanical Switch-ACR-Mechanical Switch with Knobs DTM Connector

The Egis relay replaces three individual high-amp relays with one compact module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.

Applications:

• Designed to replace common multi-battery mechanical switching and charge management functions - common dual battery load switching via the outer relays and a central automatic charging relay to share charge current are easily implemented
• Expandable with link and cross-link busbars to additional dual, triple, or single XD relays - supports 3 or 4 battery systems with standard busbar interconnect accessories.

Features:

• Bullet-proof construction - sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere; stainless steel cable lug studs; large mounting holes accept 1/4-20 / M6 attachment hardware
• Intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions)
• Simple programming via dip switches gives each relay function significant flexibility for OEMs and installers.
• 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts
• Plug and play compatible with legacy competitor products - single, dual, and triple relay options are available with DTM/ATM connector pins compatible with ML Series bi-stable relays (This relay has a DTM connector)
• 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality

Specifications:

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Mechanical Switching Life: 1,000,000 Cycles
• Voltage Range (VDC): 8-36
• Off-State Current Draw (mA): 1.3
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

Focal Features:

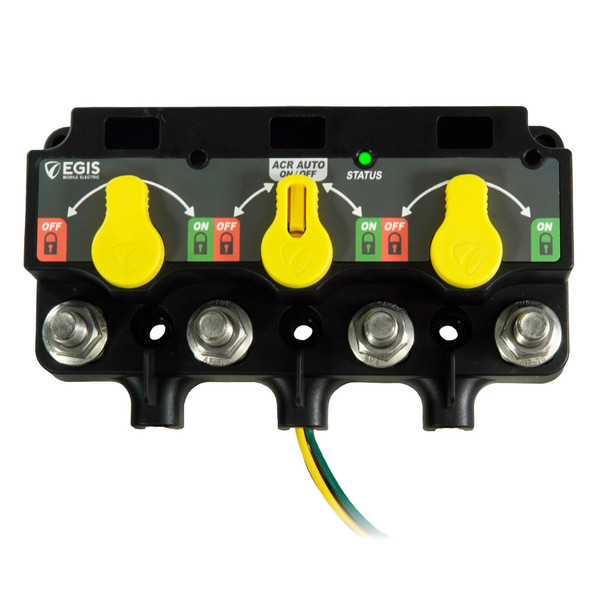

Led Status Display

The easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED.

3-Position Manual override

Force each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition.

40 Circuit Label Sheet Included

Convenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications.

Protective Cover included

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Stainless Hardware

Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.

Programmable

Via dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications.

Smaller Footprint

XD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum.

Integrated Vent

High-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric XD Series Triple Flex 2 Mechanical Switch (Part Number: 8830-1939) offers a compact, reliable solution for high-current switching and battery management applications. Designed to replace multiple relays with a single, integrated module, this device significantly reduces installation space and simplifies wiring by eliminating external link cables. Its robust construction, sealed to IP67/IP6K9K standards, ensures dependable operation in harsh environments, making it suitable for a wide range of off-road, marine, and industrial applications. The stainless steel cable lug studs and corrosion-resistant hardware provide durability, while the integrated venting system prevents moisture ingress, extending product lifespan. The unit supports continuous currents up to 500 amps and a maximum cranking current of 1500 amps, with a mechanical switching life of up to 1 million cycles, ensuring longevity in demanding use cases. The advanced bi-stable solenoid design reduces power consumption by up to 95% when off, promoting energy efficiency in vehicle systems. The intuitive LED status indicators and a three-position manual override facilitate straightforward operation, allowing users to lock relays in either open or closed states and clearly monitor device status. Programming via dip switches offers flexible configuration options tailored to specific OEM or installer requirements, enhancing system adaptability. The included circuit label sheet aids in easy identification and troubleshooting, while the protective cover prevents accidental shorts at terminal points. Compatible with legacy relays and designed for seamless integration, the Egis XD Series is a versatile, space-saving solution that combines high performance with ease of use for complex battery management and switching needs. Ideal for expanding multi-battery setups, this relay supports up to four battery systems with standard busbar accessories, making it a comprehensive choice for professional vehicle and equipment installations.

Features:

• Bullet-proof construction with IP67/IP6K9K sealing for harsh environment durability

• Intuitive LED status display for clear device monitoring

• Three-position manual override to lock relays open or closed

• Includes weatherproof circuit label sheet for easy identification

• Protective cover to prevent shorts at terminal studs

• Corrosion-resistant stainless steel hardware for long-term reliability

• Programmable via dip switches for flexible configuration

• Compact design reduces mounting space by up to 75%

• Integrated venting system to eliminate moisture buildup

• High-current capacity: 500A continuous, 1500A cranking

• Long mechanical lifespan: 1 million cycles

• Low off-state current draw for energy efficiency
