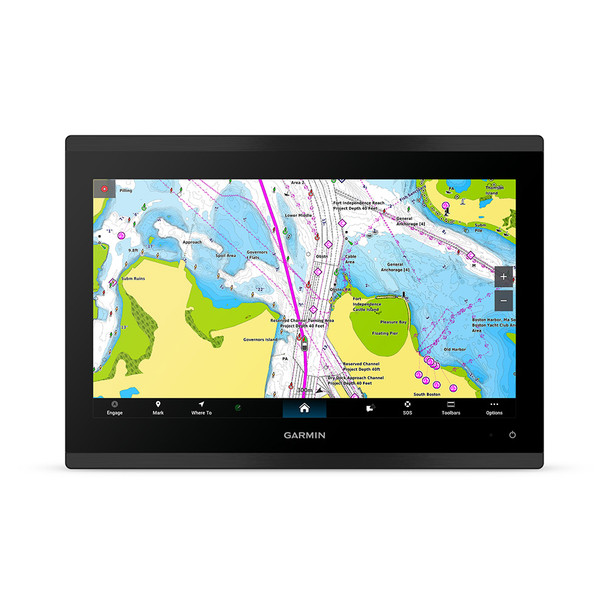

Garmin GPSMAP 9013 Premium Chartplotter with 4K Touchscreen and Worldwide Basemap

GPSMAP 9013 Premium Chartplotter with Worldwide Basemap

PARADISE STARTS HERE

Its the integrated 4K touchscreen chartplotter for captains and anglers who demand the best. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials.

Features:

• Premium IPS sunlight-readable touchscreen display


• Up to 7 times faster processing power than previous generations


• Get clarity like never before on a 4K display


• Supports Garmin Navionics+ charts with Auto Guidance+ technology¹



• Gigabit speeds on the Garmin Bluenet network


• Network with multiple chartplotters, cameras, and more

Premium Chartplotter

The 4K IPS sunlight-readable touchscreen display and edge-to-edge design provide a seamless and luxurious modern look.

Faster. Much Faster.

Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+ routes¹ with lightning speed with an optional Garmin Navionics+ subscription.

Garmin Bluenet Network

Build extensive networks with multiple chartplotters, cameras, radars, and sonars and enjoy gigabit-speed

EntertainmentOptions

Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.

Garmin Sailassist Sailing Features and Sailing Polars

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, and more. Plus, the polar table shows key data, so you know whether you need to adjust sail trim.

Connect Your Ecosystem

Take command through digital system integrations to monitor, automate, and control your vessel. The chartplotter uses the NMEA 2000 network to connect to your compatible accessories.

Connect

• Software Updates: Get wireless software updates via the ActiveCaptain app with your compatible smartphone or tablet.


• Engine Monitoring: Keep tabs on engine performance with extensive engine integration.


• Custom Look: Manufacturers can customize the homepage layout and splash screen for a brand-tailored experience.

Navigate

• Mapping: Navigate with optional Garmin Navionics+ charts that include Auto Guidance+ technology, daily updates, and more¹ (subscription required).


• Premium Charts: Get support for Garmin Navionics Vision+ charts with premium relief shading and satellite imagery.


• Know Where You Are: Get your precise location with the built-in dual-frequency 10 Hz GPS.


•
  Autopilot:Control the autopilot with any compatible chartplotter on the network with autopilot integration.

Integrate

• Connect Cameras: Get extensive camera support and control to see footage directly on the chartplotter.


• Control with Your Watch: Connect to your chartplotter with your compatible Garmin smartwatch.


• Wireless Connectivity: Connect compatible devices with integrated Bluetooth and ANT technologies.


• Fish Mapping: Get comprehensive fishing data with the Fish Mapping feature from SiriusXM Radio (accessory purchase and subscription required).


• Verbal Commands: Use spoken commands to control the chartplotter through your compatible headset or quatix smartwatch.


• Weather-Resistant:


• The GPSMAP 9000 chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating.

Whats In The Box

• GPSMAP 9013 premium chartplotter


• Power cable


• Backbone/drop cable (2 meters) and T-connector for the NMEA 2000 Network


• Bail mount with knobs


• Flush mount kit


• Protective cover


• Trim piece snap covers


• Documentation

Specifications:

General:

• Dimension: 13.2 x 9.19 x 3.56


• Weight: 9.1 lbs


• Water Rating: IPX7


• Touchscreen: Yes


• Display Type: 4K, IPS; Mini LED (Local Dimming) backlight


• Display Size: 11.57 x 6.50 x 13.27 diagonal


• Display Resolution: 3840 x 2160 pixels


• Mounting Options: Bail, flat, or flush


• Input: Touchscreen


• Polarized Lens Viewability: Yes

Maps Memory:

• Accepts Data Cards: 2 microSD cards (on rear of product)


• Supports USB Card Reader: Yes


• Waypoints: 5,000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Sensors:

• GPS: Yes


• GLONASS: Yes


• GALILEO: Yes


• BEIDOU: Yes


• Has Built-in Receiver: Yes


• Receiver: 10 Hz


• NMEA 2000 Compatible: Yes


• NMEA 0183 Compatible: Yes


• Supports WAAS: Yes


• Supports Multi-Band, Multi-Constellation GPS: Yes

Chartplotter Features:

• Smart Mode Compatible: Yes


• AIS: Yes


• DSC: Yes


• Supports Fusion-Link Compatible Radios: Yes


• GCV Black Box Sonar Support: Yes


• Activecaptain Compatible: Yes


• Supports Voice Commands: Yes


• GRID (Garmin Remote Input Device) Compatible: Yes


• GRID 20 Compatible: Yes


• Wireless Remote Compatible: Yes


• Sailing Features: Yes


• Spoken Audio Alerts: Yes


• Onehelm Support: Yes

Electrical Features:

• Power Input: 10 to 32 Vdc


• Typical Current Draw at 12Vdc: 3.6A


• Maximum Current Draw at 12Vdc: 4.14A


• Maximum Power Usage at 10Vdc: 44w

Connections:

• NMEA 2000 Ports: 1


• NMEA 0183 Input (RX) Ports: 1


• NMEA 0183 Output (TX) Ports: 1


• Video Input Ports: 1 (BNC composite); 1 HDMI (HDCP compliant)


• Video Output Ports: 1 HDMI


• J1939 Ports: 1


• Garmin Bluenet Networks Ports: 2


• USB Ports: yes (1x USB-C)


• Bluetooth Pairing: Yes


• ANT (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes


• Wi-Fi Frequency Bands: 2.4 GHz 5 GHz


• Audio Output: Yes

^{1Auto Guidance+ is for planning purposes only and does not replace safe navigation operations}

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Garmin GPSMAP 9013 Premium Chartplotter offers an exceptional navigation experience with a stunning 11.57-inch diagonal 4K IPS touchscreen display, designed for both professional captains and avid anglers. Its edge-to-edge glass helm design provides a sleek, modern aesthetic, combining luxury with advanced functionality. The sunlight-readable display ensures clear visibility in harsh marine conditions, making it ideal for demanding environments. This chartplotter supports Garmin Navionics+ charts with Auto Guidance+ technology, enabling precise route planning and efficient navigation. With processing speeds up to seven times faster than previous models, users can quickly draw charts, establish routes, and access critical information with minimal delay. The device's robust processing capability enhances overall performance, ensuring smooth operation during complex navigation tasks.

Features:

• Premium IPS sunlight-readable touchscreen display: Provides clear, vibrant visuals even in direct sunlight for optimal visibility.

• Up to 7 times faster processing power: Delivers quick chart rendering, route calculation, and smooth operation.

• 4K display resolution: Offers unmatched clarity and detail for navigation and chart viewing.

• Supports Garmin Navionics+ charts with Auto Guidance+: Facilitates precise route planning with automated guidance (subscription required).

• Gigabit speeds on Garmin Bluenet network: Enables fast data transfer and seamless integration with multiple devices and sensors.

• Network with multiple chartplotters, cameras, and more: Supports extensive vessel monitoring and control systems.

• Built-in dual-frequency 10 Hz GPS: Ensures accurate positioning and smooth tracking even in challenging conditions.

• NMEA 2000 and 0183 compatibility: Connects easily with other marine electronics for comprehensive system management.

• Weather-resistant IPX7 rating: Built to withstand harsh marine environments, including water immersion.

• Wireless connectivity options: Includes Bluetooth, ANT, and Wi-Fi for software updates, device pairing, and media streaming.
