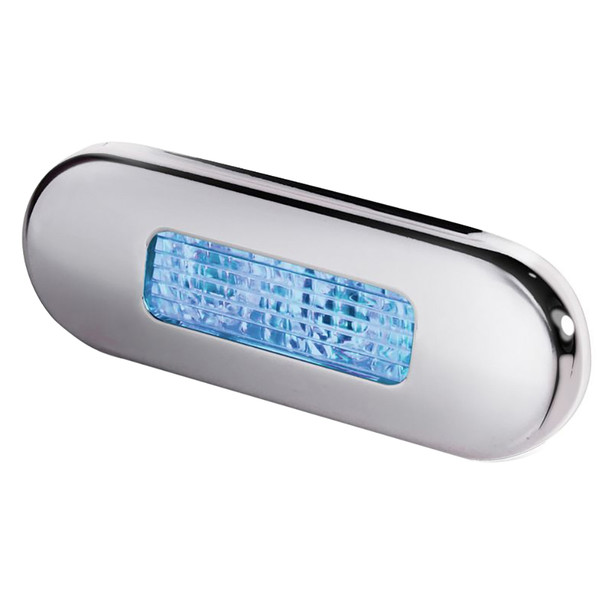

Hella Marine Surface Mount Oblong Blue LED Courtesy Lamp with Stainless Steel Bezel

Surface Mount Oblong LED Courtesy Lamp - Blue LED - Stainless Steel Bezel

Oblong LED lamps are offered as either dedicated step lamps or general courtesy illumination with equal vertical spread.

Step lamps carry engineered optics to direct light downwards at 30 safely illuminating deck and step tread surfaces without shining into the eyes.

Completely sealed and ultra durable, Hella Marine LED lamps may be installed on a vessels interior or exterior, wet or dry.

Polished 316 Stainless Steel bezels are included with each part number. Black and white plastic end caps are also included.

Specifications:

• Lens Material: UV and enhanced impact resistant Grilamid


• Rim Material: 316 stainless steel


• Cable: Pre-wired with 120mm of marine cable


• Operating Voltage: Multivolt 12 / 24V DC


• Power Consumption: 0.5W ( < 0.04A@12V / < 0.02A@24V )


• Degree of Protection: IP 67 - Completely Sealed


• Mounting: Stainless steel screws included


• Weight: 35g (including cable)


• Approvals: CE

The Hella Marine Surface Mount Oblong LED Courtesy Lamp with Blue LED provides reliable, low-profile illumination suitable for both interior and exterior marine applications. Designed with a polished 316 stainless steel bezel, this lamp adds a sleek and durable touch to any vessel. Its UV and impact-resistant Grilamid lens ensures long-lasting clarity and performance in harsh marine environments. The lamp is completely sealed with an IP67 rating, making it resistant to water ingress, dust, and corrosion, ensuring dependable operation regardless of weather conditions. The integrated pre-wired cable with 120mm marine-grade wiring simplifies installation, allowing for quick setup on your boat or yacht. Operating at multivolt 12/24V DC, it consumes only 0.5W, making it an energy-efficient choice for courtesy lighting or step illumination. The dedicated optics direct light downward at a 30-degree angle to safely illuminate deck and step surfaces without causing glare or distraction for crew and passengers. The package includes stainless steel mounting screws along with black and white plastic end caps for versatile aesthetic options. Suitable for a range of marine vessels, this LED courtesy lamp combines durability, efficiency, and sleek design, meeting CE standards for quality and safety. Whether used for general courtesy lighting or dedicated step illumination, the Hella Marine model 980869601 is a reliable addition to any marine lighting setup.

Features:

• Premium stainless steel bezel for corrosion resistance and durability

• UV and impact-resistant Grilamid lens for long-lasting performance

• Completely sealed IP67 rating for waterproof and dustproof operation

• Pre-wired with 120mm marine-grade cable for easy installation

• Multivolt operation suitable for 12V and 24V DC systems

• Low power consumption of 0.5W for energy efficiency

• Downward angled optics for safe deck and step illumination

• Includes stainless steel mounting screws and optional black and white end caps

• CE certified for safety and quality assurance

• Compact design weighing just 1.2 ounces for versatile mounting
