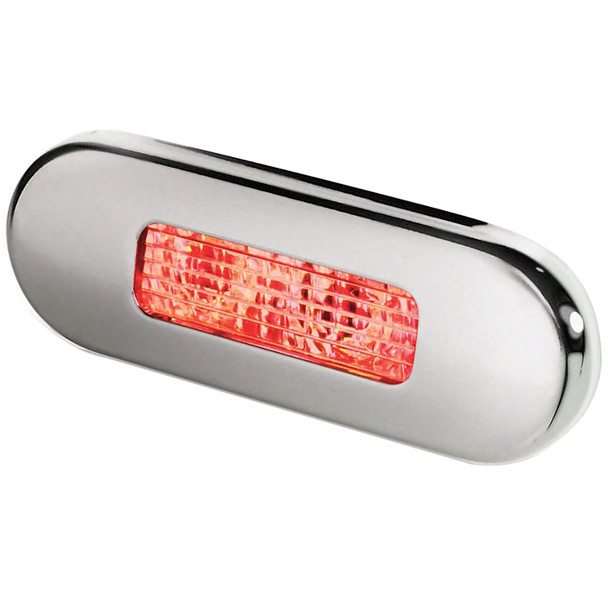

Hella Marine Surface Mount Oblong Red LED Courtesy Lamp with Stainless Steel Bezel

Surface Mount Oblong LED Courtesy Lamp - Red LED - Stainless Steel Bezel

Oblong LED lamps are offered as either dedicated step lamps or general courtesy illumination with equal vertical spread.

Step lamps carry engineered optics to direct light downwards at 30 safely illuminating deck and step tread surfaces without shining into the eyes.

Completely sealed and ultra durable, Hella Marine LED lamps may be installed on a vessels interior or exterior, wet or dry.

Polished 316 Stainless Steel bezels are included with each part number. Black and white plastic end caps are also included.

Specifications:

• Lens Material: UV and enhanced impact resistant Grilamid


• Rim Material: 316 stainless steel


• Cable: Pre-wired with 120mm of marine cable


• Operating Voltage: Multivolt 12 / 24V DC


• Power Consumption: 0.5W ( < 0.04A@12V / < 0.02A@24V )


• Degree of Protection: IP 67 - Completely Sealed


• Mounting: Stainless steel screws included


• Weight: 35g (including cable)


• Approvals: CE

The Hella Marine Surface Mount Oblong Red LED Courtesy Lamp offers reliable and efficient illumination for marine applications. Designed with a durable stainless steel bezel and UV-resistant, impact-resistant Grilamid lens, this lamp is built to withstand harsh marine environments both indoors and outdoors. Its compact design provides an even vertical spread of light, making it suitable for either courtesy illumination or as a step lamp with engineered optics that direct light downward at a safe angle of 30 degrees to illuminate deck and step surfaces without causing glare or discomfort. This ensures safety and visibility in all weather conditions. The lamp is fully sealed with an IP 67 rating, guaranteeing protection against water and dust ingress, making it ideal for wet or dry environments on vessels. It is pre-wired with 120mm of marine-grade cable for easy installation, and stainless steel screws are included for secure mounting. The lamp operates on a multivolt 12/24V DC power supply, consuming only 0.5W, which makes it energy-efficient and suitable for various electrical systems. Weighing just 35 grams including cable, this compact light is approved by CE standards for quality assurance. Its sleek stainless steel rim enhances the aesthetic appeal and durability, ensuring long-lasting performance in demanding marine conditions. Whether installed on the interior or exterior of a vessel, this courtesy lamp provides dependable illumination, improving safety and navigation during nighttime or low-light situations. Its corrosion-resistant construction and robust design make it a valuable addition to any marine lighting setup.

Features:

• Durable stainless steel bezel for corrosion resistance and aesthetic appeal

• UV and impact-resistant Grilamid lens for longevity and clarity

• Pre-wired with 120mm marine-grade cable for easy installation

• Operates on multivolt 12/24V DC power supply, consuming only 0.5W

• IP67 rated for complete sealing against water and dust ingress

• Engineered optics for downward light projection at 30 degrees, ideal for deck and step illumination

• Includes stainless steel mounting screws for secure installation

• Lightweight design at 35 grams including cable, suitable for various vessel applications

• CE approved for safety and quality standards
