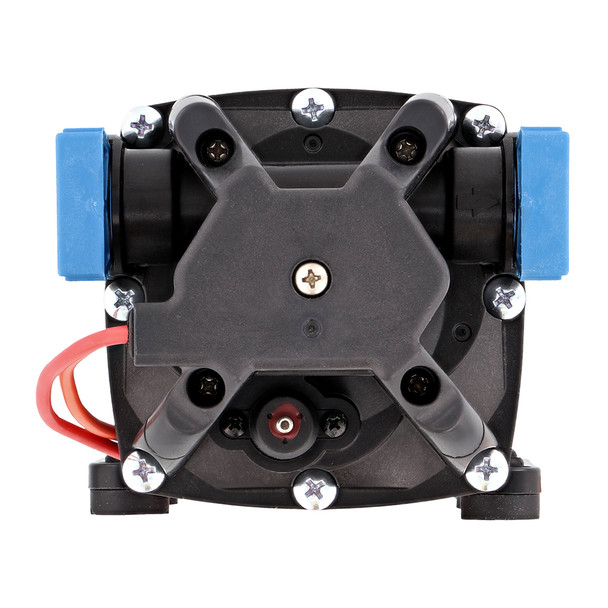

Jabsco Par-Max HD4 Heavy Duty 12V Water Pressure Pump - 4 GPM at 40 PSI

Par-Max HD4 Heavy Duty Water Pressure Pump - 12V - 4 GPM - 40 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.13m/min)


• Certifications: CE, ISO8846, RCM


• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump is engineered for demanding applications requiring reliable performance and long service life. Designed with a wider diameter motor enclosed in a powder-coated shell, cast aluminum endbells, and a robust lower housing, this pump delivers exceptional pressure capabilities and durability. Ideal for marine, RV, and industrial use, the HD4 model offers a flow rate of up to 4 gallons per minute and maintains a working pressure of 40 PSI, making it suitable for various water distribution needs. Its heavy-duty construction ensures longevity even under high-pressure conditions, and the integrated features promote efficient operation and easy maintenance.

Equipped with co-molded diaphragm technology, the pump provides enhanced durability and resistance to wear. The sealed pressure switch allows for on-demand operation, reducing unnecessary cycling and conserving energy. Self-priming capability of up to 7 feet enables flexible installation options, while the ability to run dry without damage adds to its robustness. Quick connect ports facilitate straightforward installation and maintenance, minimizing downtime. Vibration dampening mounting feet reduce noise and vibration during operation, contributing to a quieter environment. An integrated bypass module ensures smoother flow and reduces cycling, further extending the pump's lifespan.

Constructed with a glass fiber reinforced polypropylene pump head, co-molded TPV diaphragm, and EPDM check valves, the Jabsco Par-Max HD4 is built to withstand harsh conditions. It is rated IPX6 for ingress protection and complies with CE, ISO8846, and RCM standards, making it suitable for a wide range of international applications. The pump's design allows it to operate efficiently within a fluid temperature range of 32°F to 140°F (0°C to 60°C), ensuring versatility across different environments. Its compact size and lightweight design make it an excellent choice for installations where space and weight are considerations. Overall, the Jabsco Par-Max HD4 is a dependable, high-performance water pressure pump suited for demanding water supply systems in marine, RV, or industrial settings.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motor and cast aluminum lower housing for enhanced pressure and lifespan

• Efficient and quiet operation for user comfort

• Integrated, sealed pressure switch for on-demand operation

• Self-priming capability up to 7 feet for installation flexibility

• Can run dry without damage for added reliability

• Quick connect ports for easy installation and maintenance

• Vibration dampening mounting feet to reduce noise and vibration

• Integrated bypass module for smoother flow and reduced cycling
