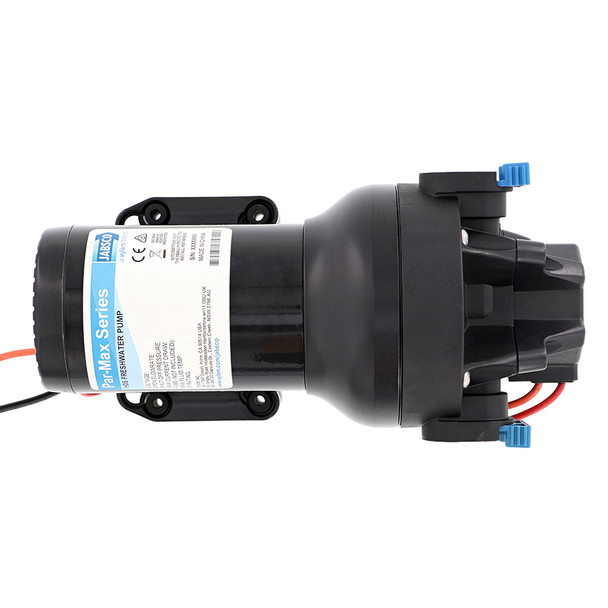

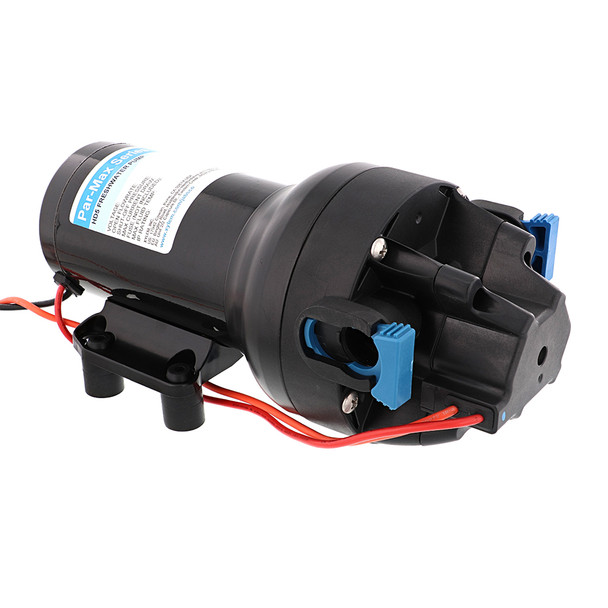

Jabsco Par-Max HD5 Heavy Duty 12V Water Pressure Pump – 5 GPM, 40 PSI

Par-Max HD5 Heavy Duty Water Pressure Pump - 12V - 5 GPM - 40 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.13m/min)


• Certifications: CE, ISO8846, RCM


• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max HD5 Heavy Duty Water Pressure Pump is designed for demanding applications requiring reliable water delivery. With a 12-volt power supply, this pump delivers a flow rate of 5 gallons per minute and operates at a maximum pressure of 40 PSI, making it suitable for various marine, RV, and industrial uses. Its heavy-duty construction includes a wider diameter motor with a powder-coated shell, cast aluminum endbells, and a durable lower housing, all of which extend the pump's lifespan and pressure capacity. The HD models are engineered to perform efficiently at high pressures, providing long-lasting service even under tough conditions. The pump features a co-molded diaphragm made from TPV, ensuring longevity and resistance to wear, while the integrated sealed pressure switch allows for on-demand operation, conserving energy and reducing wear. Self-priming capability up to 7 feet and the ability to run dry without damage offer installation flexibility and increased reliability. Quick connect ports facilitate straightforward installation, servicing, and maintenance, while vibration dampening mounting feet minimize noise and vibrations during operation. An integrated bypass module helps reduce cycling and ensures smoother flow, enhancing overall performance. The pump's construction with glass fiber reinforced polypropylene and EPDM check valves makes it suitable for a wide range of fluids and temperatures, with a fluid temperature range from 32°F to 140°F. Certifications such as CE, ISO8846, and RCM confirm compliance with international standards. With an ingress protection rating of IPX6, the Jabsco Par-Max HD5 is built to withstand harsh environments. Ideal for vessels with multiple outlets, this pump offers a reliable and efficient water supply solution for demanding applications. Please note, this product contains chemicals known to cause cancer in California, and appropriate precautions should be taken during handling and installation.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motors and cast aluminum lower housings for enhanced pressure capability and longevity

• Efficient and quiet operation

• Integrated, sealed pressure switch for on-demand operation

• Self-priming capability up to 7 feet for versatile installation

• Can operate dry without damage

• Quick connect ports for easy installation and maintenance

• Vibration dampening mounting feet reduce noise and vibrations

• Integrated bypass module to reduce cycling and ensure smooth flow
