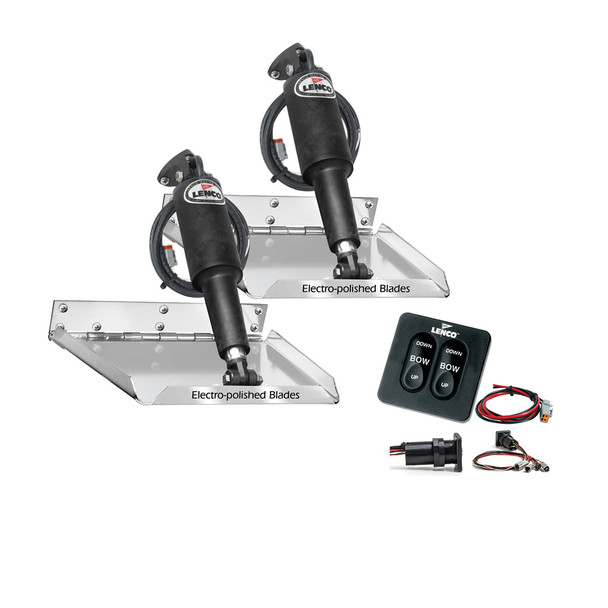

Lenco Marine 12" x 9" Standard Performance Trim Tab Kit with Tactile Switch Control - Part RT12X9

Standard Performance Series Tabs


Standard actuator with 5/16 stainless steel through bolts. 1 turned up edges with 2 taper on the inside. All 12-gauge 304 stainless steel construction with Electro-Polished Blades

We make the best boats better!

Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's Standard Performance series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. Why should your trim tab system be any different

• All stainless steel construction (no dissimilar metals), Electro Polished Blades for long lasting good looks

• Actuator speed is precise and controllable so there are no surprises at top speeds

Actuators

• Instant response

• Fully submersible, maintenance-free and sealed for life

• High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

Standard Solid State Tactile Switch Kits with Retractor Feature
#15069-001 (124SSR)
For 12-volt single actuator systems. Control box is waterproof, self-contained, sealed, solid state, Deutsch connected for easy Plug & Play installation, and features built-in retractor. Kit includes 36" power pigtail and nylon nuts for mounting keypad. Colorful display box.

Features

• Built-In Retractor Feature

• Solid State Electronics

• Plug & Play

• Low Profile Design

• Self-Contained, sealed keypad & solid state control box with waterproof connectors

• Simple, Quick Installation

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75'

Each kit contains:

• Standard Tactile Switch Kit

  2 actuators with 6' Lead & Deutsch Plugs

  • 2 12 Gauge SS Electro Polished trim tab planes

  • 2 20' Actuator Extension Wiring Harness

  • 2 Upper Mounting Bracket with Gland Seal

  • 2 Lower Mounting Bracket

  • All Necessary stainless steel mounting Hardware

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Upgrade your boat's handling with the Lenco Marine RT12X9 Standard Performance Trim Tab Kit, designed for demanding marine conditions. Crafted from all 12-gauge 304 stainless steel with electro-polished blades, these trim tabs offer durability and corrosion resistance essential for rough waters. The actuator features 5/16 stainless steel through bolts, with a turned-up edge and dual taper on the inside for reliable performance. Built to withstand aggressive boating, this kit ensures your vessel maintains optimal trim even at high speeds in challenging environments. The high-impact, ultraviolet-resistant nylon case of the actuator is sealed and maintenance-free, providing instant response and long-lasting operation. The all-stainless steel construction eliminates dissimilar metals, reducing corrosion potential, while the electro-polished blades maintain a sleek, polished appearance over time. The control system includes a waterproof, sealed, self-contained solid state control box with Deutsch connectors for quick Plug & Play installation. The built-in retractor feature ensures safety and ease of use, and the low-profile design fits seamlessly into your boat's console. Included in the kit are two actuators with 6-foot leads and Deutsch plugs, two electro-polished trim tab planes, two actuator extension wiring harnesses, mounting brackets with gland seals, stainless steel hardware, and a colorful display control box. This comprehensive package simplifies installation and ensures reliable operation for any marine enthusiast seeking robust and responsive trim control. Whether navigating choppy seas or cruising at high speeds, this trim tab kit offers the performance and durability needed for aggressive boating adventures, making it an essential upgrade for serious boaters.

Features:

• All stainless steel construction with electro-polished blades for corrosion resistance and long-lasting aesthetics

• Actuator features instant response and is sealed for life, maintenance-free operation

• High-impact, ultraviolet-resistant nylon case enhances durability against harsh marine conditions

• Built-in retractor feature for safety and ease of use

• Plug & Play control system with waterproof, sealed, solid state electronics for quick installation

• Low profile design fits seamlessly into your boat's setup

• Complete kit includes actuators, trim tab planes, wiring harnesses, brackets, hardware, and control box
